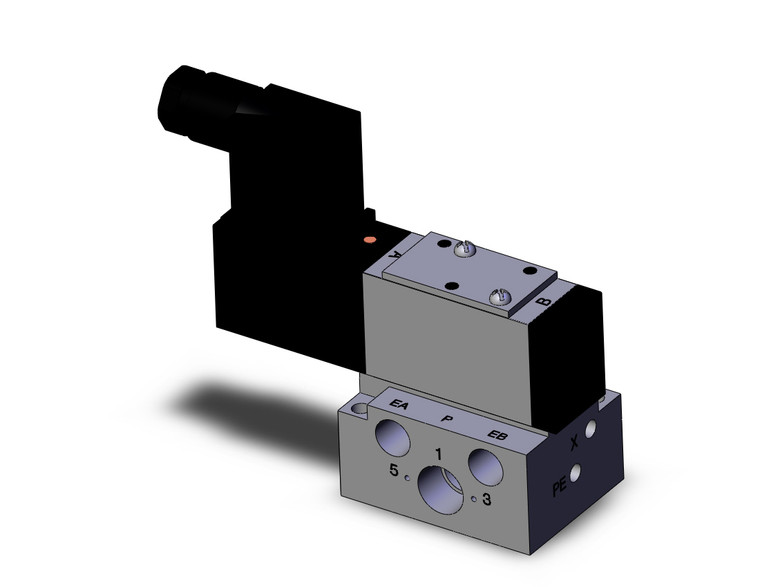

SMC VFR2110-6D-02T 4/5 Port Solenoid Valve
- SKU:
- VFR2110-6D-02T
- Condition:
- New
- Availability:
- In stock: 593
- Function:
- 1 (2 Position Single)
- Body Option:
- 10 (Base Mounted Non Plug-in)
- Pilot:
- Internal Pilot
- Voltage:
- 6 (12VDC)
- Lead Wire:
- D (DIN Terminal w/Connector)
- Surge Suppressor:
- None
- Manual Override:
- Non-locking Push Style (Flush)
- Port Size:
- 02 (Base Mounted w/Sub-plate 1/4 Side Piping)
- Thread:
- T (NPTF)
Description
VFR2000, Plug-in & Non Plug-in Types, Metric
Series VFR consists of 5 port pilot solenoid valves with rubber seals and base mounted type manifolds, available in plug-in and non plug-in styles. Port sizes range from 1/8 to 1/2 with Rc(PT), NPTF G(PF) thread types available. Various options also available.
-
- VFR2000, plug-in non plug-in types- Maximum operating pressure: up to 0.9MPa
- Ambient fluid temperature: Max. 50 C
- Manual override: non locking push style
-
Related Products
SMC VFR2110-6D 4/5 Port Solenoid Valve
$54.25
VFR2000, Plug-in & Non Plug-in Types, MetricSeries VFR consists of 5 port pilot solenoid valves with rubber seals and base mounted type manifolds, available in plug-in and non plug-in styles...
$54.25
$71.85
$71.85
$65.70

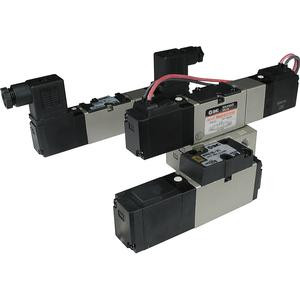

SMC VFR2110-6DO-02T 4/5 Port Solenoid Valve
