SMC VNC311A-20A-5DZ 2 Port Process Valve
- SKU:
- VNC311A-20A-5DZ
- Condition:
- New
- Availability:
- In stock: 7
- Size:
- 3 [20(14)]
- Valve Type:
- 1 [NC (Operating Pressure 0.5MPa)]
- Sealant:
- A (NBR seal)
- Thread:
- Rc(PT)
- Port Size:
- 20A (3/4)
- Voltage:
- 5 (24VDC)
- Lead Wire:
- DZ (DIN Terminal w/Light & Surge Voltage Suppressor)
- Manual Override:
- Non-locking Push Style
- Bracket:
- None
- X200:
- No
- CE Compliant:
- No
Description

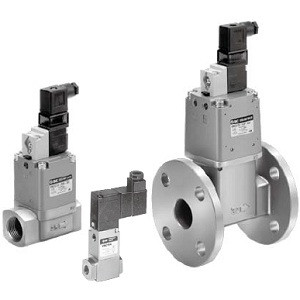

VNC (Solenoid), Process Valve for Coolant
The VNC series is for controlling the cutting oils and coolants used in machine tools. It is available as both Normally Closed or Normally Open type.
-
- External pilot solenoid type- Orifice size: 7mm to 80mm
- Port size: 1/8 to 2 inch
- Seal material: NBR, FKM
