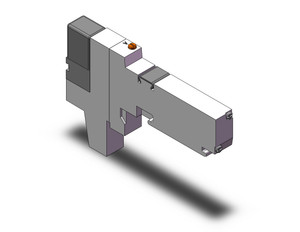

SMC VQ1A01-5B1 5 Port Plug-In Valve
SMC
$88.15
The SMC VQ1A01-5B1 5 Port Plug In Valve, part of the VQ1000 Series, is engineered for high-performance applications demanding rapid actuation, consistent response times, and extended operational longevity. This solenoid valve is a plug-in type, base-mounted, and features a new style design that enhances its versatility in complex systems.
Engineered for use with air and inert gases, the VQ1A01-5B1 operates efficiently within a pressure range of 0.1MPa to 0.7MPa, with a high-pressure variant available up to 1.0MPa. The valve supports a wide range of coil rated voltages, including 12VDC, 24VDC, 100VAC, 110VAC, 200VAC, and 220VAC, making it adaptable to various power supply configurations.
The ambient and fluid temperature range of -10 to 50°C ensures reliable performance in diverse environmental conditions. The innovative design includes built-in one-touch fittings, significantly reducing piping time and labor, and allowing for quick valve changes without the need to disassemble the entire manifold.
For engineers and manufacturing professionals seeking a robust solution for high-speed and frequent operations, the SMC VQ1A01-5B1 offers a blend of efficiency and durability. Access the [Series Catalog](https://content2.smcetech.com/pdf/VQ.pdf) for detailed specifications and download the [AutoCAD File](https://models.smcetech.com/VQ1A01-5B1/dl3d/step/AP214/VQ1A01-5B1.step.zip) for integration into your design projects.
- Actuation:
- A (4 Position Dual 3 Port Valve N.C./N.C.)
- Seal:
- 1 (Rubber Seal)
- Function:
- Standard (0.4W DC, AC)
- Coil Voltage:
- 5 (24VDC)
- Light/Surge Suppressor:
- Yes
- Manual Override:
- B (Locking, Tool Required)
- CE Compliant:
- No
