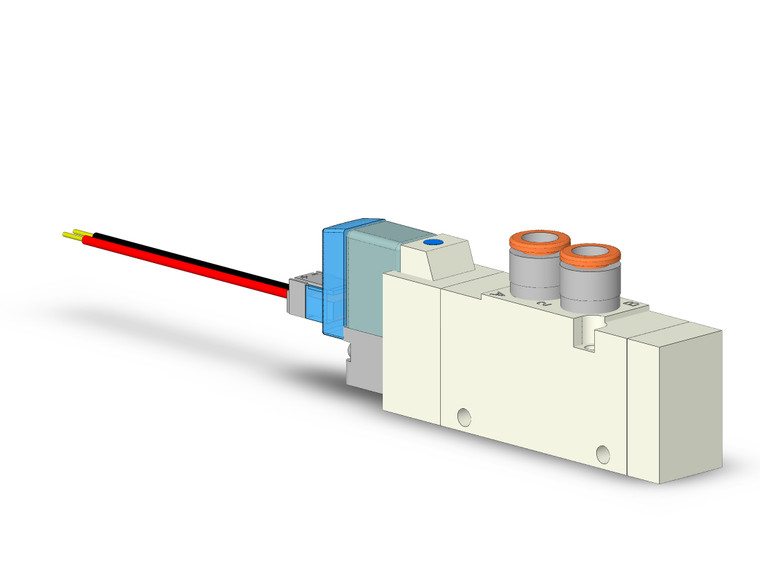

SMC VQZ2121-5L1-N7T 2000 Series 5 Port Valve
SMC
$52.10
VQZ**2*, 1000/2000/3000 Series, 5 Port Solenoid Valve, Body Ported
Series VQZ base mount solenoid valves combine convenience with durability and performance in a more traditional mounting style. Series VQZ Body Ported Solenoid Valves combine flexibility with high performance and long life in an inline body style.
-
- Fluid: air, inert gas- Operating pressure range: 0.1 - 0.7MPa
- Effective area mm 2 (Cv):metal seal 2.0 (0.11) - 12.6 (0.7);rubber seal 3.1 (0.17) - 16.2 (0.9)
- Coil rated voltage: 12, 24VDC;100, 110, 200, 220VAC
- Response time (ms) standard 1W, high pressure 1.5W:metal seal 25 or less; rubber seal 30 or less
- Ambient fluid temperature: -10 to 50 C
-
- Series:
- VQZ2000
- Configuration:
- 2 Position Single
- Seal Type:
- Rubber Seal
- Function:
- 0.35W DC, AC
- Coil Voltage:
- 24VDC
- Lead Wire:
- L Plug Connector w/Lead Wire, Light & Surge Suppressor
- Manual Override:
- Non-locking Push Style
- IP65 Compliant:
- No
- Port Size:
- 1/4" One-touch Fitting
- Thread:
- NPTF
- CE Compliant:
- No
