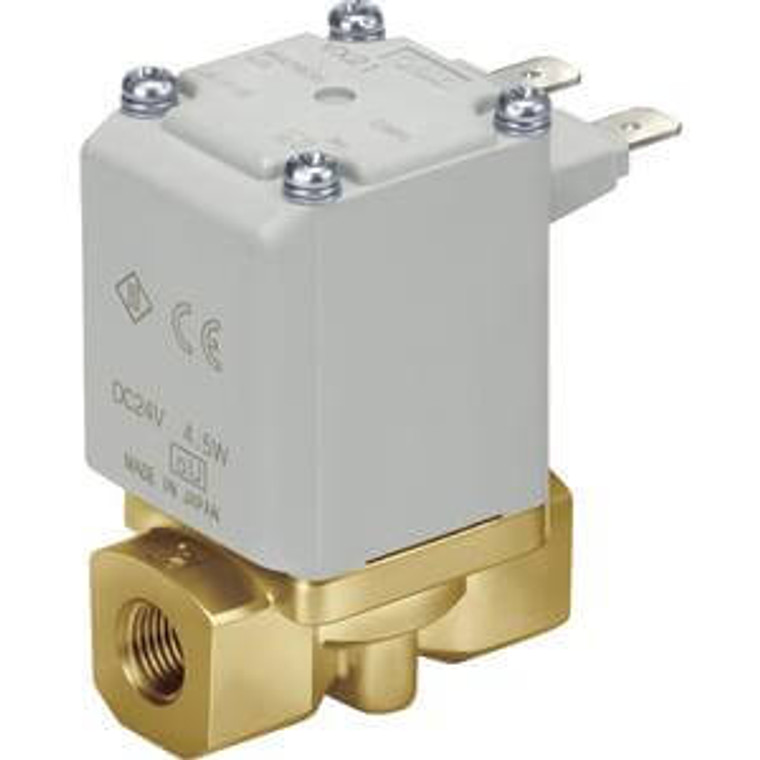

SMC VX232FGB 2 Port Valve
- SKU:
- VX232FGB
- Condition:
- New
Description
series vx21/22/23, is a direct operated 2 port solenoid valve for air, gas, vacuum, water, steam and oil. proper selection of body and sealing materials permits application of a wide variety of fluids. application can be matched by simply choosing body materials (brass, stainless steel), seal materials (nbr, epr, fpm, ptfe) and the solenoid coil (class b, class h).
- ip65 enclosure
- conforms to ul94v-0 flame resistance
- special construction improves service life when compared with current shading coil
- power consumption: size 1 - 4.5w; size 2 - 7w; size 3 - 10.5w
- body material: c37 (brass), stainless steel
Additional Information
Size, Body, Valve Type: |
32F (Size= 3 |
Body Mat'l: |
C37 |
Port Size: |
3/8 |
Orifice Dia: |
10, N.C.) |
Voltage and Electrical Entry: |
G (24VDC |
Other Voltages and Electrical Options: |
None |
Other Options: |
B (NPT Thread) |
Bracket Interchangeable w/Old Type: |
No |
