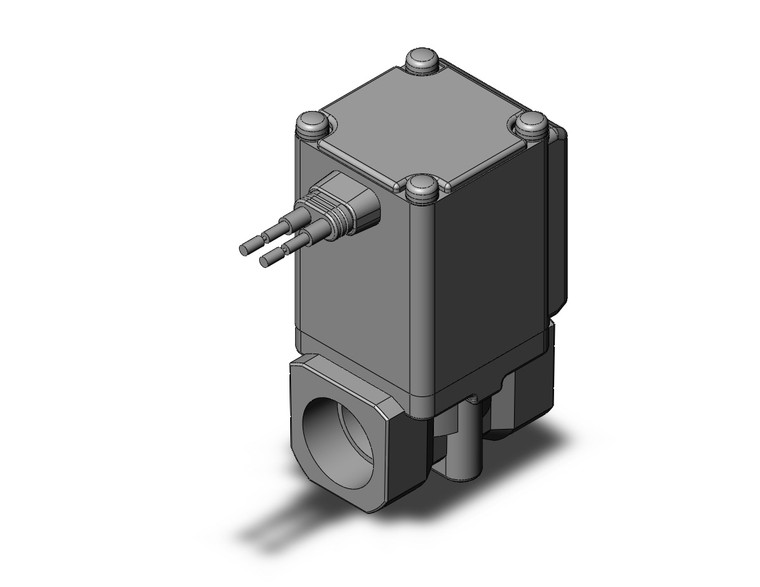

SMC VX232GAB 2 Port Valve
- SKU:
- VX232GAB
- Condition:
- New
Description
VX2*2, Single Unit, Direct Operated 2 Port Solenoid Valve for Water
The VX2 for water is available with brass and stainless steel body. Three body sizes are available, with port size ranges from 1/8 to 1/2 inch. NBR seal is used as standard and FKM or EPDM is optional. Flow rate ranges from Cv of 0.23 to 2.21.
-
- IP65 enclosure- Normally Closed and Normally Open type available, Class B coil
- Special construction improves service life when compared with current shading coilPower consumption: size 1 - 4.5w; size 2 - 7w; size 3 - 10.5w
- Body material: C37 (brass), stainless steel
Additional Information
Size, Body, Valve Type: |
32G (Size= 3 |
Body Mat'l: |
C37 |
Port Size: |
1/2 |
Orifice Dia: |
10, N.C.) |
Voltage and Electrical Entry: |
A (24VDC |
Other Voltages and Electrical Options: |
None |
Other Options: |
B (NPT Thread) |
Bracket Interchangeable w/Old Type: |
No |
