Description

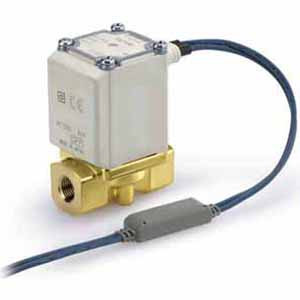

VX2*5, Single Unit, Direct Operated 2 Port Solenoid Valve for Steam
The VX2 for steam (up to 183 C) is available with brass and stainless steel body. Three body sizes are available, with port size ranges from 1/8 to 1/2 inch. High temperature FKM seal and Class H coil insulation are standard. Flow rate ranges from Cv of 0.23 to 2.21.
-
- IP65 enclosure- Normally Closed and Normally Open type available, Class H coil
- Special construction improves service life when compared with current shading coil
- Power consumption: size 1 ÛÒ 9 w; size 2 ÛÒ 12 w; size 3 - 15w
- Body material: brass (C37), stainless steel
- Can be used with heated water
