SMC VXE2121V-00-5G1 2 Port Sol Valve, Direct Operated

(No reviews yet) Write a Review
SKU:
VXE2121V-00-5G1
Condition:
New
Model:
21
Orifice Diameter:
2 (3 mm)
Valve/Body Configuration:
1 (N.C. for Manifold)
Solenoid Valve Option:
V (Aluminum Body, FKM Seal, Class B, Oil-free)
Suffix:
Standard
Manifold Designation:
00 (Aluminum Base Material)
Voltage:
5 (24VDC)
Lead Wire:
G (Grommet)
$43.00

Description

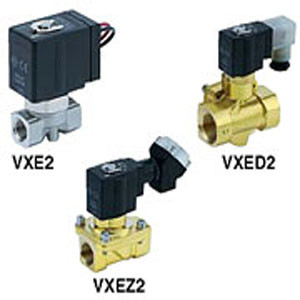

VXE, Energy Saving Type, 2 Port Solenoid Valve for Manifold

The VXE2 for manifold is a direct operated 2 port solenoid valve with built in power saving circuit that reduces power consumption during holding by 1/3. Up to 10 valves can be mounted to one manifold. Available as normally closed configuration. Flow rate ranges from Cv of 0.18 to 1.10
-

- Power saving circuit to reduce power consumption by 1/3 during holding operation
- Power consumption: 1.5W (size 1), 2.3W (size 2), 3W (size 3)
- Common port size: 3/8 inch
- Seal material available: NBR, FKM
- Rated voltage: 24VDC, 12VDC

Series Catalog

AutoCAD File
