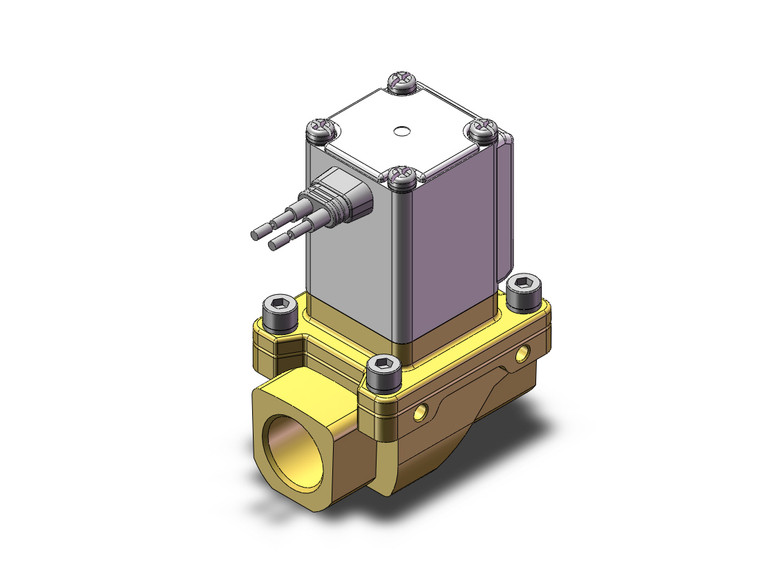

SMC VXZ246FGA 2 port valve pilot op 2 port solenoid valve, (n.c.)

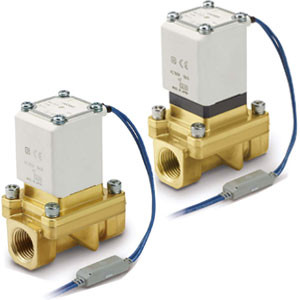

SMC VXZ246FGA VXZ Series Zero Differential Pressure Type Pilot Operated 2 Port Solenoid Valve For High Temperature Oil

SMC
SKU:
VXZ246FGA
Availability:
Contact us to confirm availability and lead times.
$106.80
Condition:
New
Current Stock:
Description

VXZ Series Zero Differential Pressure Type Pilot Operated 2 Port Solenoid Valve For High Temperature Oil

  • For air, water, oil, heated water, high temperature oil;
  • Body material: Aluminum, resin, C37, Stainless steel;
  • With One-touch fittings (resin body) type is available;
  • IP65
    • Additional Information
    Size-Valve Type:
    Body Size:15A
    Body Material/Port Size/Orifice Diameter:
    Body Material:C37,Port Size:1/2,Orifice Diameter:15
    Voltage/Electrical Entry:
    Voltage:24 VDC,Electrical Entry:Din Terminal With Surge Voltage Suppressor
    Special Voltage-Electrical Entry/Electrical Option:
    None
    Other Option:
    Oil-Free:Not Complian,Port Thread:G
    Installation Options:
    None
    Special Electrical Entry Direction:
    Standard
