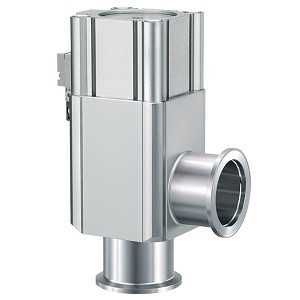

SMC XLAV-80M-2M9NA-5LZ XLAV Series Aluminum High Vacuum Angle Valve Air Operated, With Solenoid Valve

SMC XLAV-80M-2M9NA-5LZ XLAV Series Aluminum High Vacuum Angle Valve Air Operated, With Solenoid Valve

SMC
SKU:
XLAV-80M-2M9NA-5LZ
$1,111.10
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description

XLAV Series Aluminum High Vacuum Angle Valve Air Operated, With Solenoid Valve

  • Aluminum bodied; Uniform baking temperature; Lightweight, Compact; Minimal outgassingr; Minimal contamination from heavy metals;
  • Possible to replace the bellows
    • Additional Information
    Flange Size:
    80
    Flange Type:
    KF(NW)
    Indicator/Solenoid Valve Direction:
    Without Indicator,Right Flange Surface
    Auto Switch Type:
    Solid State Auto Switch, Grommet, With Indicator Light, 3-wire (NPN), In-line, Lead Wire :0.5m, Apply Voltage :DC5V,12V,24V(DC4.5~28V)
    Number Of Auto Switches/Detecting Position:
    Quantity:2 pcs.
    Rated Voltage:
    24 VDC
    Electrical Entry:
    L Type Plug Connector
    Light/Surge Voltage Suppressor:
    With Light/Surge Voltage Suppressor
    Body Surface Treatment:
    External:Hard Anodized Internal:Raw Material
    Seal Material:
    Seal Material:FKM
    Part Numbers Indicating Changed Seal Material And Leakage:
    Changed Part:-
    CE-compliant:
    -
