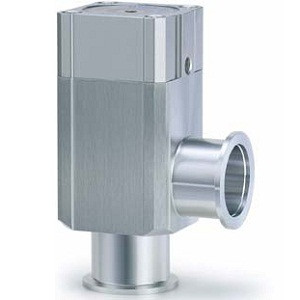

SMC XLF-100D-M9PLA XLF Series Aluminum High Vacuum Angle Valve Normally Closed/O-ring Seal

SMC XLF-100D-M9PLA XLF Series Aluminum High Vacuum Angle Valve Normally Closed/O-ring Seal

SMC
SKU:
XLF-100D-M9PLA
Availability:
Contact us to confirm availability and lead times.
$1,997.40
Condition:
New
Current Stock:
Description

XLF Series Aluminum High Vacuum Angle Valve Normally Closed/O-ring Seal

  • Strong against fluorine;
  • Minimal gas emissions;
  • Minimal heavy metal contamination
    • Additional Information
    Flange Size:
    100
    Flange Type:
    K(DN)
    Indicator/Pilot Port Direction:
    Without Indicator,Flange Side
    Temperature Specifications/Heater:
    5 To 60 ,Without Heater
    Auto Switch Type:
    Solid State Auto Switch, Grommet, With Indicator Light, 3-wire (PNP), In-line, Lead Wire :3m, Apply Voltage :DC5V,12V,24V(DC4.5~28V)
    Number Of Auto Switches/Detecting Position:
    Quantity:2 pcs.
    Body Surface Treatment:
    External:Hard Anodized Internal:Raw Material
    Seal Material:
    Seal Material:FKM
    Seal Material Changed Part And Leakage:
    Changed Part:None
    Made To Order:
    Standard
