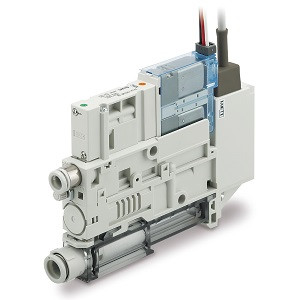

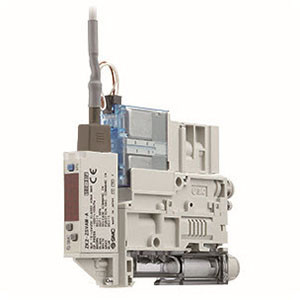

SMC ZK2A10K5RWA-08 ZK2A Series Ejector System Vacuum Unit

The SMC ZK2A10K5RWA-08 is a single unit vacuum ejector integrating an energy-saving design with advanced control capabilities, ideal for precision vacuum generation in industrial automation and manufacturing processes.

• Supply Valve Feature: Incorporates a newly added Normally Open (N.O.) specification supply valve that maintains vacuum integrity even during power outages or shutdowns, preventing sudden loss of workpiece hold, assuming supply pressure remains stable.
• IO-Link Compatible Pressure Switch: Equipped with a digital pressure switch compatible with IO-Link communication protocol allowing streamlined ejector control via a single communication line. Enables remote device information reading and batch parameter setting, enhancing system integration and monitoring.
• System Compatibility: Designed to interface seamlessly with both ejector systems and vacuum pump systems, offering versatile application across different vacuum generation setups.
• Energy Saving Function: Features an automatic air supply cut-off once the target vacuum level is reached, achieving up to 93% reduction in air consumption according to SMC's measurement standards, thus significantly lowering operational energy costs.
• Enhanced Suction Flow Performance: Improves suction flow rate by 50% compared to previous SMC single-stage ejectors, resulting in faster and more efficient vacuum generation.
• Noise Reduction: Incorporates a high-noise reduction silencer that lowers operating noise levels, improving work environment comfort by reducing sound emissions typically generated by vacuum ejectors.

Technical Specifications:

• Fluid: Air and inert gases
• Vacuum pressure range: Up to -100 kPa
• Supply voltage: 24 VDC
• Suction flow rate: Increased by 50% versus other single-stage ejectors
• Noise level: Reduced through advanced silencer design
• Connection ports: Includes one-touch fittings for vacuum and pilot pressure supplies

This vacuum unit’s compact and lightweight construction allows for easy installation and maintenance in automated systems where reliable vacuum holding and energy efficiency are critical. The integration of IO-Link technology facilitates advanced diagnostics and remote control, making the ZK2A10K5RWA-08 a cutting-edge choice for energy-conscious manufacturing environments.
