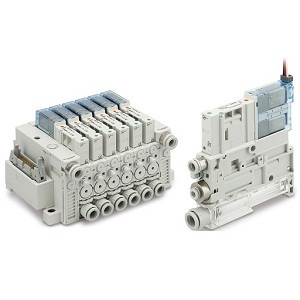

SMC ZK2H10K5CCA-06-J ZK2A Series Ejector System Vacuum Unit With Valve (No Energy Saving Function)

The SMC ZK2H10K5CCA-06-J is a high-performance vacuum unit from the ZK2A series, designed specifically for manifold ejector systems. This unit integrates a supply valve with normally open (N.O.) specification, providing robust vacuum retention even during power outages or when power is turned off, maintaining supply pressure to prevent sudden dropping of workpieces in industrial automation applications.

Equipped with an IO-Link compatible pressure switch, this vacuum unit enables advanced ejector control via a single communication line, facilitating seamless reading of device information and batch parameter settings. This feature significantly enhances system integration and monitoring capabilities in automated manufacturing environments.

The unit supports both ejector systems and vacuum pump systems, offering versatility for diverse vacuum generation needs. Although this specific model excludes the energy-saving function, it maintains efficient operation with improved suction flow and reliable vacuum hold.

Compared to conventional SMC single-stage ejectors, this ejector system provides a 50% increase in suction flow, augmenting performance for higher throughput and improved handling of delicate or variable-sized workpieces. The design also incorporates a high-noise reduction silencer that reduces operational noise levels while optimizing suction efficiency, critical for maintaining compliant and operator-friendly industrial environments.

This vacuum unit is engineered for compact installation and easy maintenance, ensuring minimal footprint on production lines and reduced downtime associated with servicing.

• Supply Valve: Normally Open (N.O.) specification for vacuum hold during power interruptions
• Pressure Switch: IO-Link compatible for simplified communication and device management
• Compatibility: Suitable for manifold ejector and vacuum pump systems
• Suction Flow: 50% higher than standard SMC single-stage ejectors
• Noise Control: High-noise reduction silencer for quieter operation
• Energy Saving Function: Not included in this model

This unit is an optimal choice for manufacturing and automation engineers seeking a reliable, high-performance vacuum generator with advanced control features but without integrated energy-saving air cut-off, suitable for applications where continuous vacuum and rapid response are critical.
