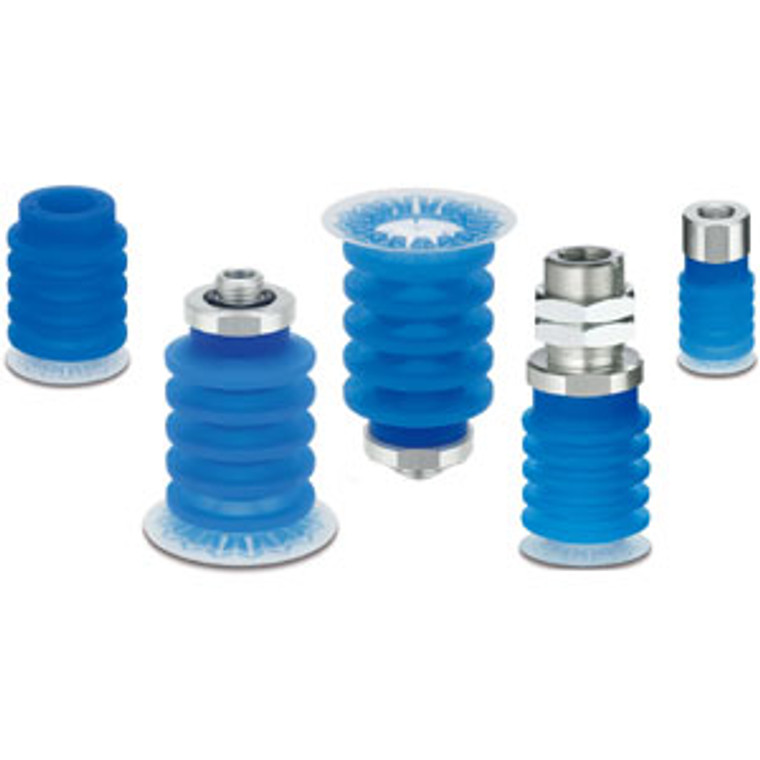

SMC ZP3P-50JT5SF-WG ZP3P-JT Series Vacuum Pad Bellows Type Pad Unit

The ZP3P-50JT5SF-WG is a precision-engineered vacuum pad from SMC's ZP3P-JT Series, featuring a 2.5-stage bellows design optimized for the adsorption and transfer of delicate, flexible soft film packaging workpieces.

• Advanced Flat Attachment: Incorporates a newly developed 2.5-step flat attachment that effectively reduces wrinkle formation during vacuum adsorption, ensuring minimal deformation of thin film materials and consistent product handling performance.
• Vacuum Transfer for Flexible Films: Specifically designed to handle flexible soft film packaging, enabling stable adsorption and transfer even for unstable workpieces such as bagged liquids or powders. This prevents damage and maintains workpiece integrity during high-speed handling.
• Thin Film Skirt with Special Shaped Ribs: The pad’s sealing skirt is engineered with ultra-thin, flexible silicone rubber and uniquely shaped ribs to enhance sealing efficiency and reduce vacuum leakage, ensuring a reliable grip on smooth or irregular surfaces.
• FDA and Food Safety Compliance: Both the vacuum pad and its flat attachment are manufactured using materials fully compliant with FDA 21 CFR 177 and Japan's Food Sanitation Act standards, supporting safe use in food packaging and pharmaceutical industries.
• Blue Colored Pad for Contamination Detection: The distinctive blue coloration of the pad facilitates quick visual inspection for contamination during routine maintenance, improving operational hygiene and minimizing downtime.

Technical Specifications:

This vacuum pad unit combines high-performance sealing technology with hygienic design to support efficient and contamination-safe vacuum handling in precision manufacturing and packaging automation environments.
