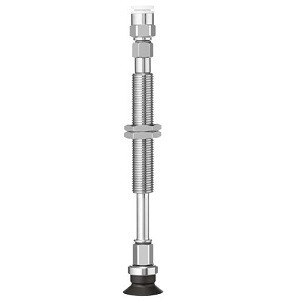

SMC ZPR02UUJ15-06-A8 | ZP Series Basic Flat Vacuum Pad 2mm Lateral Entry With Buffer Urethane Rubber 15mm Stroke Micro-Component

The SMC ZPR02UUJ15-06-A8 is an ultra-miniature flat type vacuum pad from the ZP series, featuring the smallest available 2mm pad diameter with urethane rubber construction, lateral vacuum entry, and 15mm buffer stroke with J-type soft spring. This is a specialty micro-handling pad designed for picking and placing extremely small components in semiconductor die bonding, MEMS device assembly, micro-optics placement, and precision medical device manufacturing where component dimensions are measured in single-digit millimeters.

How small a component can a 2mm vacuum pad handle? A 2mm pad can reliably grip flat components as small as 2.5mm x 2.5mm, including bare semiconductor die, micro-LEDs, tiny SMD (surface mount device) components, watch parts, and miniature medical implant components. The urethane rubber ("UU") material ensures mark-free contact on these often high-value, surface-sensitive micro-components. The J-type soft buffer spring provides the gentlest possible contact force, critical when handling parts that weigh milligrams where even slight impact could cause displacement.

The lateral vacuum entry ("R" prefix) routes tubing to the side, maintaining the smallest possible tooling footprint above the work surface for integration into tight-pitch multi-pad arrays handling component strips or matrix trays. The 15mm buffer stroke provides substantial compliance relative to the 2mm pad size, accommodating height variations in component carriers and feeders.

Connected via ø6mm one-touch fitting ("06") with "A8" buffer body. RoHS compliant and compatible with SMC's precision vacuum generators and micro-ejectors designed for low-volume, high-precision vacuum applications.
