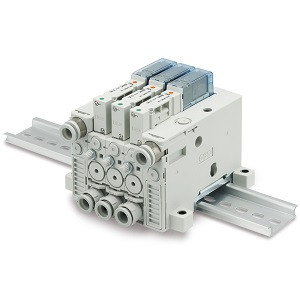

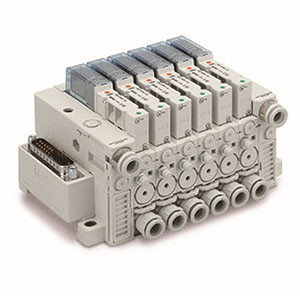

SMC ZZK208A-A1L-D-A ZK2A Series Vacuum Unit Ejector System Manifold

The SMC ZZK208A-A1L-D-A is an advanced manifold type vacuum unit ejector system designed for efficient and reliable vacuum generation in manufacturing and automation applications. It belongs to the ZK2A series, known for its energy-saving features and enhanced performance.

• Supply Valve with Normally Open (N.O.) Specification: Incorporates a supply valve with a new N.O. configuration that maintains vacuum integrity even during power outages, assuming supply pressure is maintained. This feature prevents sudden dropping of workpieces, ensuring higher operational safety and process continuity.
• IO-Link Compatible Pressure Switch: Equipped with an IO-Link compatible pressure switch enabling seamless ejector control over a single communication line. This facilitates remote reading of device information and batch parameter settings, enhancing integration capabilities in automated systems.
• Compatibility: Optimized for use with both ejector systems and vacuum pump systems, providing versatility across multiple vacuum generation setups.
• Energy-Saving Ejector Technology: Features an innovative energy-saving circuit that cuts off air supply upon vacuum achievement, delivering up to 93% reduction in air consumption compared to traditional models. This contributes to significant operational cost savings through reduced compressed air usage.
• Enhanced Suction Flow: Delivers a 50% increase in suction flow relative to other SMC single-stage ejectors, supporting improved vacuum generation efficiency for faster and more reliable workpiece handling.
• Noise Reduction: Integrated high-noise reduction silencer reduces operational sound levels by mitigating unpleasant high-frequency noises, thus promoting a quieter working environment.
• Compact and Lightweight Manifold Design: Facilitates easy installation and maintenance in space-constrained industrial setups, with multiple mounting options to suit varied system requirements.

The ZZK208A-A1L-D-A manifold vacuum ejector is engineered for demanding industrial vacuum applications requiring energy efficiency, precise vacuum control, and integration ease via IO-Link. This model is suitable for use in automation environments where minimizing compressed air consumption and noise while maintaining high vacuum performance is critical.
