SMC SS5Y3-60-04B SY3000 Valve Manifold, 4 Stations
SMC
$26.85

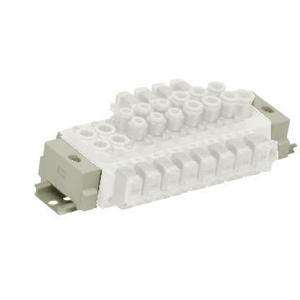

SMC SS5Y3-60-04B - SY3000·5000·7000 Series 5 Port Solenoid Valve Body Ported Manifold Cassette Type60
The SMC SS5Y manifold base mounts multiple SY series valves on a common supply and exhaust, reducing plumbing and wiring to a single connection point. Serial transmission and multi-connector wiring options cut control cabinet wiring further.
Specifications
| Series | SY3000 |
| Valve Stations | 4 Stations |
| SUP/EXH Block Assembly Mounting Position | Both Side |
| Option | Direct Mounting |
| － | Bottom Cover Assembly |
Features
- Combined mounting of 3 port valve and 5 port valve is possible
- Power consumption: 0.1 W (with power saving circuit)
- A wide variety of manifold options such as aluminum body manifold, DIN rail, stacking type manifold
- Manifold type No.: SS5Y3，SS5Y5，SS5Y7，SS5Y9
Applications
Used for consolidating multiple valve stations into a single air and wiring connection.
Related Components
- VZ3000-123-1A - Label For Block Disk
- SY3000-52-6A - Block Disk
- AN15-C08 - Silencer
- SY3000-52-5A - Bush Assembly
- SY3000-54-2C - Block Assembly
- SY3000-54-1C - Block Assembly
Frequently Asked Questions
How many stations does the SS5Y3-60-04B have?
This manifold is configured for 4 Stations stations.
Does this manifold include valves?
Manifold bases and valves are ordered separately. The manifold part number defines the base, station count, and wiring; each station is populated with a valve ordered under its own part number.
Automation Distribution is an authorized SMC distributor. Call 1-888-600-3080 for application support or volume pricing.
