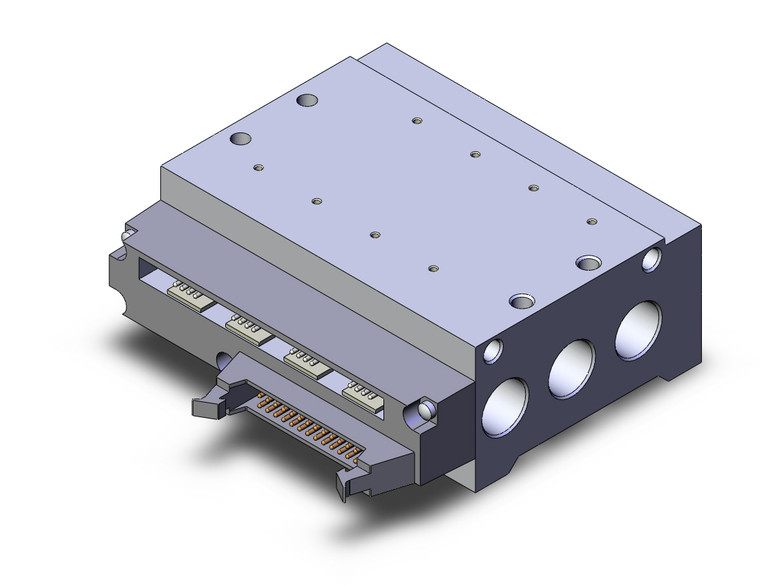

SMC SS5Y5-42P-04-N7T SY5000 Valve Manifold, One-touch Fitting For Φ1/4″
SMC
$94.05
SMC SS5Y5-42P-04-N7T - SY3000·5000·7000 Series 5 Port Solenoid Valve Base Mounted Manifold Bar Stock Type/Flat Ribbon Cable Type42P
The SMC SS5Y manifold base mounts multiple SY series valves on a common supply and exhaust, reducing plumbing and wiring to a single connection point. Serial transmission and multi-connector wiring options cut control cabinet wiring further.
Specifications
| Manifold Series | SY5000 |
| Stations | 4 Stations |
| A/B Port Size | One-touch Fitting For Φ1/4″ |
| Thread Type | NPTF |
Features
- Combined mounting of 3 port valve and 5 port valve is possible
- Power consumption: 0.1 W (with power saving circuit)
- A wide variety of manifold options such as aluminum body manifold, DIN rail, stacking type manifold
- Manifold type No.: SS5Y3，SS5Y5，SS5Y7，SS5Y9
Applications
Used for consolidating multiple valve stations into a single air and wiring connection.
Related Components
- SY5000-39-16TA - Individual EXH Spacer Assembly
- SY5000-26-21A - Blanking Plate Assembly
- SY5000-GS-2 - Gasket Assembly
- KQ2P-07 - Plug
Frequently Asked Questions
What port size does the SS5Y5-42P-04-N7T have?
The A and B ports are One-touch Fitting For Φ1/4″.
How many stations does the SS5Y5-42P-04-N7T have?
This manifold is configured for 4 Stations stations.
Does this manifold include valves?
Manifold bases and valves are ordered separately. The manifold part number defines the base, station count, and wiring; each station is populated with a valve ordered under its own part number.
Automation Distribution is an authorized SMC distributor. Call 1-888-600-3080 for application support or volume pricing.
