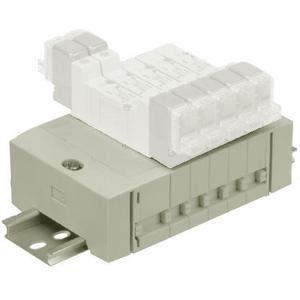

SMC SS5Y5-45-05U-N7 SY5000 Valve Manifold, 5 Stations, One-touch Fitting For Φ1/4″
SMC
$100.45
SMC SS5Y5-45-05U-N7 - SY3000·5000 Series 5 Port Solenoid Valve Base Mounted Manifold Stacking Type/DIN Rail Mounted/Individual Wiring Type45
The SMC SS5Y manifold base mounts multiple SY series valves on a common supply and exhaust, reducing plumbing and wiring to a single connection point. Serial transmission and multi-connector wiring options cut control cabinet wiring further.
Specifications
| Series | SY5000 |
| Valve Stations | 5 Stations |
| SUP/EXH Block Assembly Mounting Position | U Side |
| SUP/EXH Block Assembly Specifications | Standard/Internal Pilot Specification |
| A/B Port Size | One-touch Fitting For Φ1/4″ |
| Option | Direct Mounting |
Features
- Combined mounting of 3 port valve and 5 port valve is possible
- Power consumption: 0.1 W (with power saving circuit)
- A wide variety of manifold options such as aluminum body manifold, DIN rail, stacking type manifold
- Manifold type No.: SS5Y3，SS5Y5，SS5Y7，SS5Y9
Applications
Used for consolidating multiple valve stations into a single air and wiring connection.
Related Components
- AC00077 - Round Head Combination Screw
- SX5000-57-6 - Gasket
- VVQ1000-51A-N7 - Fitting Assembly
- SX5000-76-5A - Blanking Plate Assembly
- KQ2P-07 - Plug
Frequently Asked Questions
What port size does the SS5Y5-45-05U-N7 have?
The A and B ports are One-touch Fitting For Φ1/4″.
How many stations does the SS5Y5-45-05U-N7 have?
This manifold is configured for 5 Stations stations.
Does this manifold include valves?
Manifold bases and valves are ordered separately. The manifold part number defines the base, station count, and wiring; each station is populated with a valve ordered under its own part number.
Automation Distribution is an authorized SMC distributor. Call 1-888-600-3080 for application support or volume pricing.
