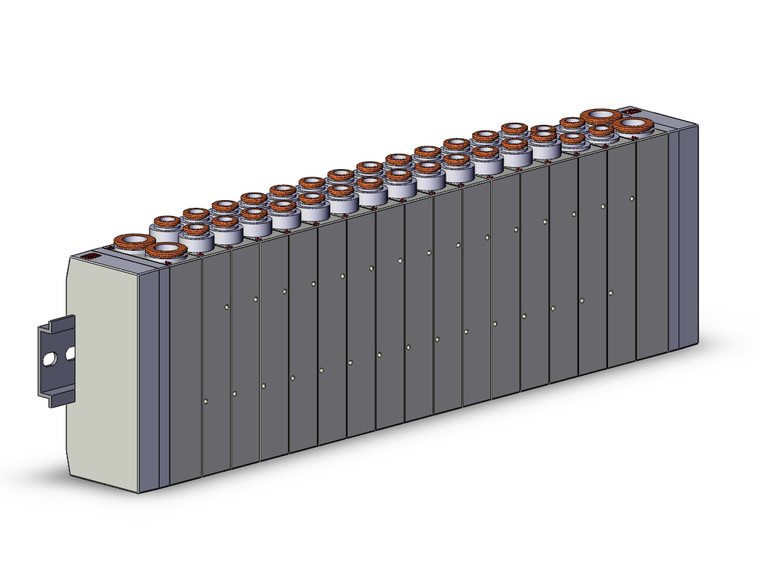

SMC SS5Y5-45-15B-C6 SY5000 Valve Manifold, 15 Stations, One-touch Fitting For Φ6
SMC
$226.45
SMC SS5Y5-45-15B-C6 - SY3000·5000 Series 5 Port Solenoid Valve Base Mounted Manifold Stacking Type/DIN Rail Mounted/Individual Wiring Type45
The SMC SS5Y manifold base mounts multiple SY series valves on a common supply and exhaust, reducing plumbing and wiring to a single connection point. Serial transmission and multi-connector wiring options cut control cabinet wiring further.
Specifications
| Series | SY5000 |
| Valve Stations | 15 Stations |
| SUP/EXH Block Assembly Mounting Position | Both Side |
| SUP/EXH Block Assembly Specifications | Standard/Internal Pilot Specification |
| A/B Port Size | One-touch Fitting For Φ6 |
| Option | Direct Mounting |
Features
- Combined mounting of 3 port valve and 5 port valve is possible
- Power consumption: 0.1 W (with power saving circuit)
- A wide variety of manifold options such as aluminum body manifold, DIN rail, stacking type manifold
- Manifold type No.: SS5Y3，SS5Y5，SS5Y7，SS5Y9
Applications
Used for consolidating multiple valve stations into a single air and wiring connection.
Related Components
- AC00077 - Round Head Combination Screw
- SX5000-57-6 - Gasket
- VVQ1000-51A-C6 - Fitting Assembly
- SX5000-76-5A - Blanking Plate Assembly
- KQ2P-06 - Plug
Frequently Asked Questions
What port size does the SS5Y5-45-15B-C6 have?
The A and B ports are One-touch Fitting For Φ6.
How many stations does the SS5Y5-45-15B-C6 have?
This manifold is configured for 15 Stations stations.
Does this manifold include valves?
Manifold bases and valves are ordered separately. The manifold part number defines the base, station count, and wiring; each station is populated with a valve ordered under its own part number.
Automation Distribution is an authorized SMC distributor. Call 1-888-600-3080 for application support or volume pricing.
- Series:
- SY5000
- Valve Stations:
- 15 Stations
- SUP/EXH Block Assembly Mounting Position:
- Both Side
- SUP/EXH Block Assembly Specifications:
- Standard/Internal Pilot Specification
- A/B Port Size:
- One-touch Fitting For Φ6
- Option:
- Direct Mounting
