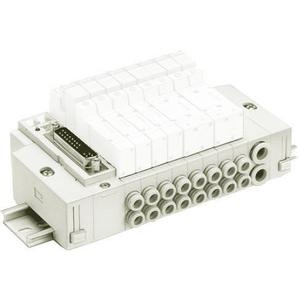

SMC SS5Y5-45FU-10B-N7 SY5000 Valve Manifold, 10 Stations, 24 VDC, One-touch Fitting For Φ1/4″

SMC SS5Y5-45FU-10B-N7 - SY3000·5000 Series 5 Port Solenoid Valve Base Mounted Manifold Stacking Type/DIN Rail Mounted/Plug-in Type45F

The SMC SS5Y manifold base mounts multiple SY series valves on a common supply and exhaust, reducing plumbing and wiring to a single connection point. Serial transmission and multi-connector wiring options cut control cabinet wiring further.

Specifications

Features

• Combined mounting of 3 port valve and 5 port valve is possible
• Power consumption: 0.1 W (with power saving circuit)
• A wide variety of manifold options such as aluminum body manifold, DIN rail, stacking type manifold
• Manifold type No.: SS5Y3，SS5Y5，SS5Y7，SS5Y9

Applications

Used for consolidating multiple valve stations into a single air and wiring connection.

Related Components

• AC00077 - Round Head Combination Screw
• SX5000-57-6 - Gasket
• SX5000-52-2A - Block Assembly
• SX5000-53-2A - Block Assembly
• SX5000-64-1A - Block Assembly
• VZ1000-11-1-13 - DIN Rail

Frequently Asked Questions

What voltage is the SMC SS5Y5-45FU-10B-N7?

The SS5Y5-45FU-10B-N7 is rated 24 VDC.

What port size does the SS5Y5-45FU-10B-N7 have?

The A and B ports are One-touch Fitting For Φ1/4″.

How many stations does the SS5Y5-45FU-10B-N7 have?

This manifold is configured for 10 Stations stations.

Does this manifold include valves?

Manifold bases and valves are ordered separately. The manifold part number defines the base, station count, and wiring; each station is populated with a valve ordered under its own part number.
