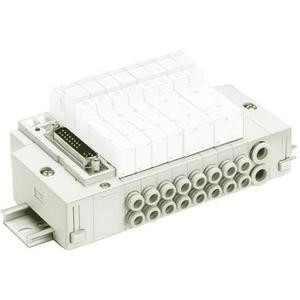

SMC SS5Y5-45NFU-04UR-N7 SY5000 Valve Manifold, 4 Stations, 24 VDC, One-touch Fitting For Φ1/4″

SMC SS5Y5-45NFU-04UR-N7 - SY3000·5000 Series 5 Port Solenoid Valve Base Mounted Manifold Stacking Type/DIN Rail Mounted/Plug-in Type45F

The SMC SS5Y manifold base mounts multiple SY series valves on a common supply and exhaust, reducing plumbing and wiring to a single connection point. Serial transmission and multi-connector wiring options cut control cabinet wiring further.

Specifications

Features

• Combined mounting of 3 port valve and 5 port valve is possible
• Power consumption: 0.1 W (with power saving circuit)
• A wide variety of manifold options such as aluminum body manifold, DIN rail, stacking type manifold
• Manifold type No.: SS5Y3，SS5Y5，SS5Y7，SS5Y9

Applications

Used for consolidating multiple valve stations into a single air and wiring connection.

Related Components

• AC00077 - Round Head Combination Screw
• SX5000-57-6 - Gasket
• SX5000-52-2A - Block Assembly
• SX5000-53-2A - Block Assembly
• SX5000-64-1NA - Block Assembly
• VZ1000-11-1-5 - DIN Rail

Frequently Asked Questions

What voltage is the SMC SS5Y5-45NFU-04UR-N7?

The SS5Y5-45NFU-04UR-N7 is rated 24 VDC.

What port size does the SS5Y5-45NFU-04UR-N7 have?

The A and B ports are One-touch Fitting For Φ1/4″.

How many stations does the SS5Y5-45NFU-04UR-N7 have?

This manifold is configured for 4 Stations stations.

Does this manifold include valves?

Manifold bases and valves are ordered separately. The manifold part number defines the base, station count, and wiring; each station is populated with a valve ordered under its own part number.
