SMC SS5YJ3-32P-05-M5T-Q SY5000 Valve Manifold, M5X0.8
SMC
$122.75

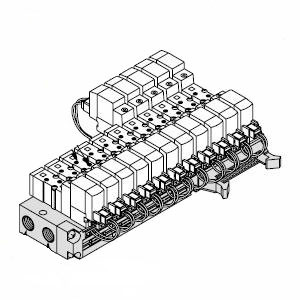

SMC SS5YJ3-32P-05-M5T-Q - SYJ3000 Series 4 Port Solenoid Valve Base Mounted Manifold Type 32P
The SMC SS5Y manifold base mounts multiple SY series valves on a common supply and exhaust, reducing plumbing and wiring to a single connection point. Serial transmission and multi-connector wiring options cut control cabinet wiring further.
Specifications
| Stations | 5 Stations |
| A/B Port Size | M5X0.8 |
| P,R Port Thread Type | NPTF |
| CE-compliant | CE-compliant |
Features
- Combined mounting of 3 port valve and 5 port valve is possible
- Electricity consumption: 0.1 W (with power saving circuit)
- Manifold type No.: SS5YJ3，SS5YJ5，SS5YJ7
Applications
Used for consolidating multiple valve stations into a single air and wiring connection.
Related Components
- SYJ3000-33-1 - Plug
- SY100-33-3 - Round Head Combination Screw
- SYJ3000-14-10 - Gasket
- SYJ3000-21-13A-Q - Blanking Plate Assembly
Frequently Asked Questions
What port size does the SS5YJ3-32P-05-M5T-Q have?
The A and B ports are M5X0.8.
How many stations does the SS5YJ3-32P-05-M5T-Q have?
This manifold is configured for 5 Stations stations.
Does this manifold include valves?
Manifold bases and valves are ordered separately. The manifold part number defines the base, station count, and wiring; each station is populated with a valve ordered under its own part number.
Automation Distribution is an authorized SMC distributor. Call 1-888-600-3080 for application support or volume pricing.
