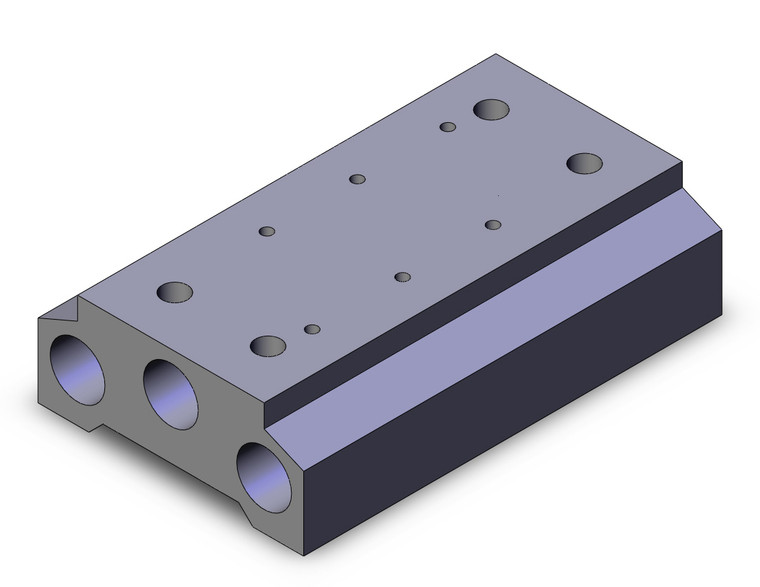

SMC SS5YJ5-40-03-M5T SY5000 Valve Manifold
SMC
$24.20
SMC SS5YJ5-40-03-M5T - SYJ5000 Series 5Port Solenoid Valve Base Mounted Manifold Type 40
The SMC SS5Y manifold base mounts multiple SY series valves on a common supply and exhaust, reducing plumbing and wiring to a single connection point. Serial transmission and multi-connector wiring options cut control cabinet wiring further.
Specifications
| Stations | 3 Stations |
| P,R Port Thread Type | NPTF |
| － | Spacer Type Regulator |
Features
- Combined mounting of 3 port valve and 5 port valve is possible
- Electricity consumption: 0.1 W (with power saving circuit)
- Manifold type No.: SS5YJ3，SS5YJ5，SS5YJ7
Applications
Used for consolidating multiple valve stations into a single air and wiring connection.
Related Components
- AC00068 - Round Head Combination Screw
- DXT192-10-16 - Gasket
- SYJ5000-21-6A - Blanking Plate Assembly
- SYJ5000-17-4A - Individual EXH Spacer Assembly
- SYJ500-3-1A - Adapter Plate Assembly
Frequently Asked Questions
How many stations does the SS5YJ5-40-03-M5T have?
This manifold is configured for 3 Stations stations.
Does this manifold include valves?
Manifold bases and valves are ordered separately. The manifold part number defines the base, station count, and wiring; each station is populated with a valve ordered under its own part number.
Automation Distribution is an authorized SMC distributor. Call 1-888-600-3080 for application support or volume pricing.
- Stations:
- 3 Stations
- P,R Port Thread Type:
- NPTF
- －:
- Spacer Type Regulator
