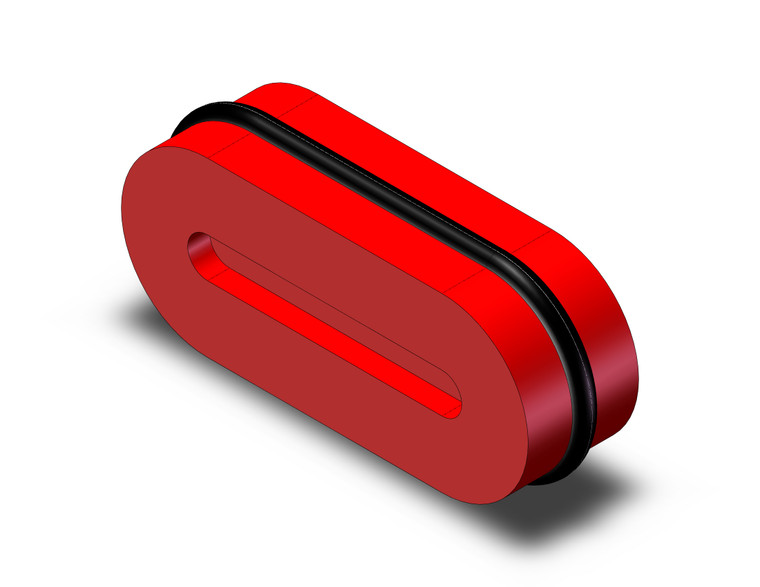

SMC SV1000-59-1A Supply Block Disc
- SKU:
- SV1000-59-1A
- Condition:
- New
- Availability:
- In our warehouse: 136
- Model:
- SV1000
- Disk Type:
- SUP Block Disk - Supply
Description
SV1000/2000/3000, SUP / EXH Block Disk, Tie-Rod Base Type 10
Supply / Exhaust port block disk for Series SV Type 10: Tie-Rod Base Manifold. By placing a SUP block disk in a manifold valve?ÇÖs pressure supply passage, two different high and low pressures can be supplied to one manifold. By installing an EXH block disk in a manifold valve?ÇÖs exhaust passage, the valve?ÇÖs exhaust can be separated so that it will not affect other valves. It can also be used on a manifold with mixed positive pressure and vacuum. (Two pieces are required to block EXH on both sides. However, Series SV1000 and 2000 type 10 manifolds require only one piece.)
- Supply / Exhaust port block disk for Series SV Type 10: Tie-Rod Base Manifold-
