Description

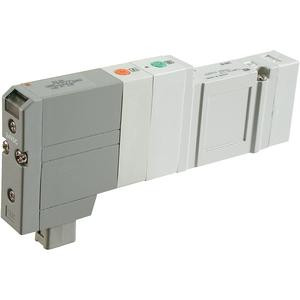

the sv series employs a multi-connector instead of the conventional lead wires for internal manifold wiring. by connecting each block with a connector, changes to manifold stations are greatly simplified. cassette base type manifolds offer the ultimate in flexibility. manifold sections can be added using a simple release mechanism. conventional tie-rod base type manifolds are also available. the use of 34 pin connectors allows up to 16 stations with double solenoids.
- fluid: air
- operating pressure range: -100kpa to 0.7mpa
- response time ms (at 0.5mpa): 18 or less
- coil rated voltage: 12, 24vdc
- ambient and fluid temperature: -10 to 50 c
- enclosure: ip67 (based on iec529)
