SMC

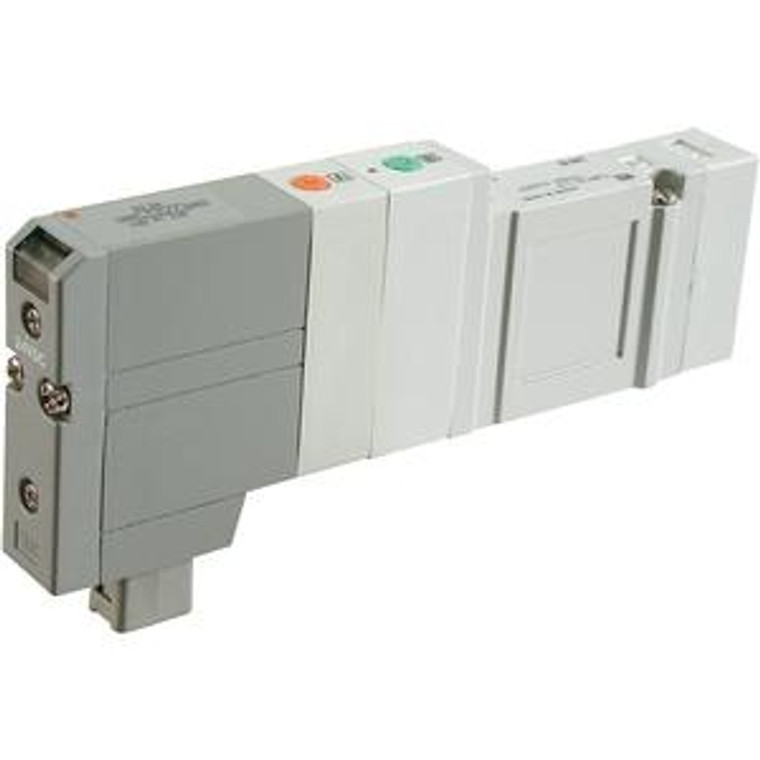

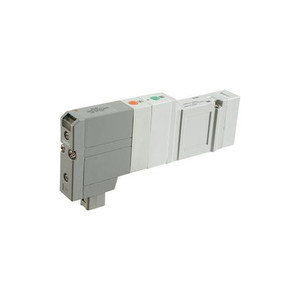

SMC SV1200-5FU-X10 Valve, Dbl Sol, Plug-In

(No reviews yet) Write a Review
SKU:
SV1200-5FU-X10
Condition:
New
$98.80

Description

the sv series employs a multi-connector instead of the conventional lead wires for internal manifold wiring. by connecting each block with a connector, changes to manifold stations are greatly simplified. cassette base type manifolds offer the ultimate in flexibility. manifold sections can be added using a simple release mechanism. conventional tie-rod base type manifolds are also available. the use of 34 pin connectors allows up to 16 stations with double solenoids.

  • fluid: air
  • operating pressure range: -100kpa to 0.7mpa
  • response time ms (at 0.5mpa): 18 or less
  • coil rated voltage: 12, 24vdc
  • ambient and fluid temperature: -10 to 50 c
  • enclosure: ip67 (based on iec529)
