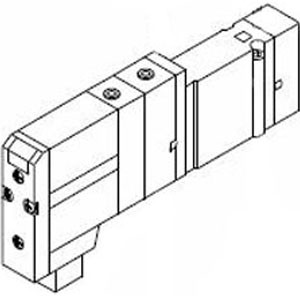

SMC SV2100-5FUD 4/5 Port Solenoid Valve

(No reviews yet) Write a Review
SKU:
SV2100-5FUD
Condition:
New
Availability:
In stock: 933
Function:
1 (2 Position Single)
Pilot:
Internal Pilot
Voltage:
5 (24VDC)
Light & Surge Suppressor:
U (Light & Surge Suppressor)
Manual Override:
D (Push-turn Locking Driver Operation Manual Button)
Manifold Block:
w/o Manifold Block
Manifold Wiring:
Double
A, B Port:
None
$60.85

Description

SV2000, 5 Port Solenoid Valve, All Types

The SV series employs a multi-connector instead of the conventional lead wires for internal manifold wiring. By connecting each block with a connector, changes to manifold stations are greatly simplified. Cassette base type manifolds offer the ultimate in flexibility. Manifold sections can be added using a simple release mechanism. Conventional tie-rod base type manifolds are also available. The use of 34 pin connectors allows up to 16 stations with double solenoids.
-

- Fluid: air
- Operating pressure range: -100kPa to 0.7MPa
- Response time ms (at 0.5MPa): 33 or less
- Coil rated voltage: 12, 24VDC
- Ambient fluid temperature: -10 to 50 C
- Enclosure: IP67 (based on IEC529)
-

Series Catalog

AutoCAD File
