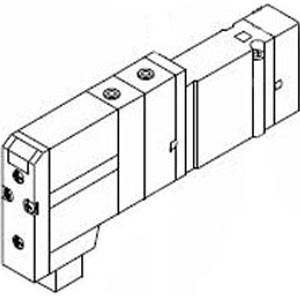

SMC SV3400-5FUD 4/5 Port Solenoid Valve
- SKU:
- SV3400-5FUD
- Condition:
- New
- Availability:
- In stock: 129
- Function:
- 4 (3 Position Exhaust Center)
- Pilot:
- Internal Pilot
- Voltage:
- 5 (24VDC)
- Light & Surge Suppressor:
- U (Light & Surge Suppressor)
- Manual Override:
- D (Push-turn Locking Driver Operation Manual Button)
- Manifold Block:
- w/o Manifold Block
- Manifold Wiring:
- Double
- A, B Port:
- None
Description
SV3000, 5 Port Solenoid Valve, All Types
The SV series employs a multi-connector instead of the conventional lead wires for internal manifold wiring. By connecting each block with a connector, changes to manifold stations are greatly simplified. Cassette base type manifolds offer the ultimate in flexibility. Manifold sections can be added using a simple release mechanism. Conventional tie-rod base type manifolds are also available. The use of 34 pin connectors allows up to 16 stations with double solenoids.
-
- SV3000 series valve- Single, double solenoid 3 position available
- Service life: 50 million cycles or more
- Supply pressure: 0.5MPa
- Unrestricted mounting orientation
-
