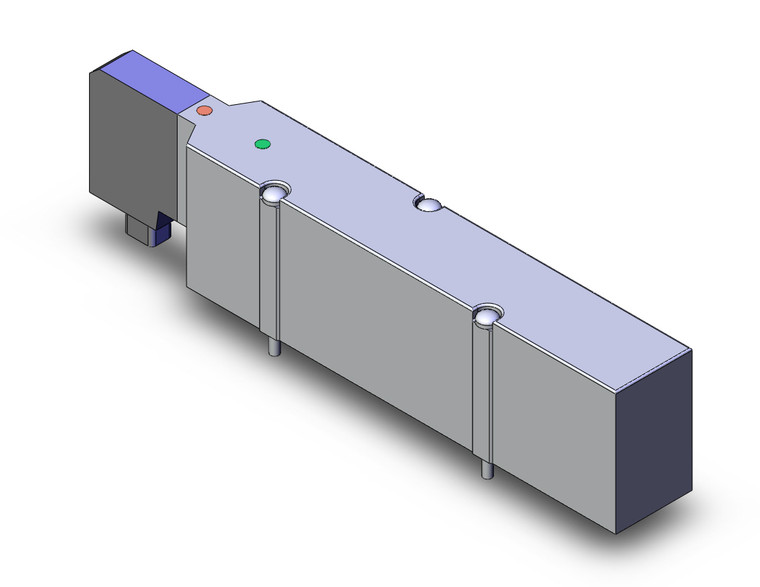

SMC SV4400R-5FU 4/5 Port Solenoid Valve

(No reviews yet) Write a Review
SKU:
SV4400R-5FU
Condition:
New
Availability:
In stock: 13
Function:
4 (3 Position Exhaust Center)
Pilot:
R (External Pilot)
Voltage:
5 (24VDC)
Light & Surge Suppressor:
U (Light & Surge Suppressor)
Manual Override:
Non-locking Push Style
Manifold Block:
w/o Manifold Block
Manifold Wiring:
Double
A, B Port:
None
$127.85

Description

the sv series employs a multi-connector instead of the conventional lead wires for internal manifold wiring. by connecting each block with a connector, changes to manifold stations are greatly simplified. cassette base type manifolds offer the ultimate in flexibility. manifold sections can be added using a simple release mechanism. conventional tie-rod base type manifolds are also available. the use of 34 pin connectors allows up to 16 stations with double solenoids.

  • sv4000 series valve
  • single, double solenoid and 3 position available
  • service life: 50 million cycles or more
  • supply pressure: 0.5mpa
  • unrestricted mounting orientation
