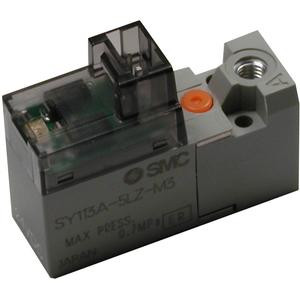

SMC SY114-5LOUD SY1000 Component, Normally Closed, 24 VDC
SMC
$26.00
SMC SY114-5LOUD - SY100 Series 3 Port Solenoid Valv/Direct Operated Type Rubber Seal Base Type
This is a component for SMC SY series valve and manifold assemblies, used for service, replacement, or system build-up.
Specifications
| Type Of Actuation | Normally Closed |
| Coil Specifications | Standard |
| Rated Voltage | 24 VDC |
| Electrical Entry | L Plug Connector Without Connector |
| Light/Surge Voltage Suppressor | With Light/Surge Voltage Suppressor(Non-polar) |
| Manual Override | Push-turn Locking Slotted Type |
| Port Size | Without Sub-plate |
| Made To Order | Standard |
| － | Replacement Parts Sub-plate |
Features
- No copper ions specification
- Manifold Type No.：SS3Y1
Applications
Used for service and replacement on SY series valve installations.
Related Components
- VJ100-6-8 - Gasket
- SY100-33-1 - Round Head Combination Screw
Frequently Asked Questions
What voltage is the SMC SY114-5LOUD?
The SY114-5LOUD is rated 24 VDC.
What type of actuation does the SY114-5LOUD use?
It is a normally closed valve.
Automation Distribution is an authorized SMC distributor. Call 1-888-600-3080 for application support or volume pricing.
- Type Of Actuation:
- Normally Closed
- Coil Specifications:
- Standard
- Rated Voltage:
- 24 VDC
- Electrical Entry:
- L Plug Connector Without Connector
- Light/Surge Voltage Suppressor:
- With Light/Surge Voltage Suppressor(Non-polar)
- Manual Override:
- Push-turn Locking Slotted Type
- Port Size:
- Without Sub-plate
- Made To Order:
- Standard
- －:
- Replacement Parts Sub-plate
