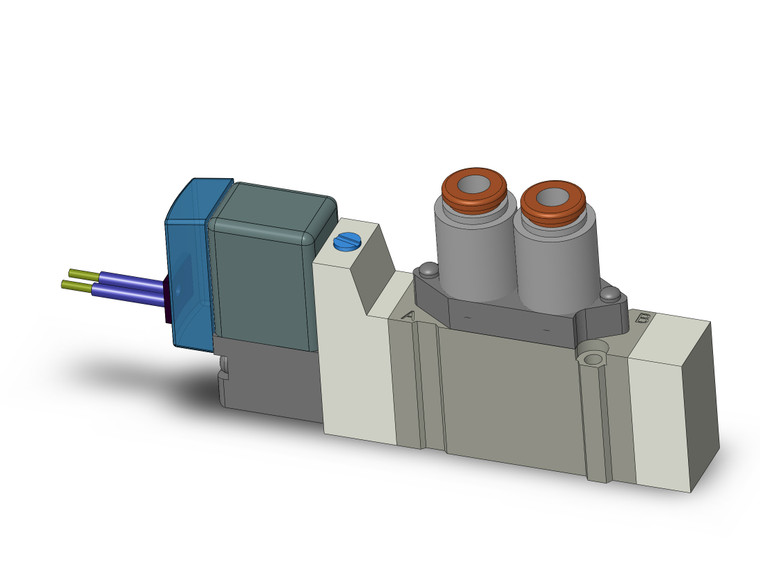

SMC SY3120-5GD-C4 SY3000 5 Port Solenoid Valve, 2 Position Single, 24 VDC, One-touch Fitting For Φ4
SMC
$55.15
SMC SY3120-5GD-C4 - SY3000·5000·7000·9000 Series 5 Port Solenoid Valve Body Ported/Single Unit
The SMC SY series is a pilot-operated 5 port solenoid valve for directing compressed air to double-acting cylinders and actuators. This is the Legacy body style, used for direct replacement on existing SY manifolds and machines.
Specifications
| Series | SY3000 |
| Type Of Actuation | 2 Position Single |
| Coil Specifications | Standard |
| Rated Voltage | 24 VDC |
| Electrical Entry | Grommet Lead Wire Length 300 mm |
| Light/Surge Voltage Suppressor | Without Light/Surge Voltage Suppressor |
| Manual Override | Push-turn Locking Slotted Type |
| A/B Port Size | One-touch Fitting For Φ4 |
| Thread Type | Rc |
| Bracket | None |
| Made To Order | Standard |
Features
- Combined mounting of 3 port valve and 5 port valve is possible
- Power consumption: 0.1 W (with power saving circuit)
- A wide variety of manifold options such as aluminum body manifold, DIN rail, stacking type manifold
- Manifold type No.: SS5Y3，SS5Y5，SS5Y7，SS5Y9
Applications
Used for cylinder control in machine automation and process equipment.
Related Components
- SY3000-GS-1 - Gasket Assembly
- SY3000-26-9A - Blanking Plate Assembly
- SY3000-26-10A - Blanking Plate Assembly
- SY3000-120-1A - Individual SUP Spacer Assembly+Individual EXH Spacer Assembly
- SY3000-38-20A - Spacer Assembly
- KQ2P-04 - Plug
Frequently Asked Questions
What voltage is the SMC SY3120-5GD-C4?
The SY3120-5GD-C4 is rated 24 VDC.
What type of actuation does the SY3120-5GD-C4 use?
It is a 2 position single valve.
What port size does the SY3120-5GD-C4 have?
The A and B ports are One-touch Fitting For Φ4.
Can this be replaced with a New Style SY valve?
Not directly. New Style and Legacy SY valves use different manifold bases. Match the existing manifold type when replacing a valve in service.
Automation Distribution is an authorized SMC distributor. Call 1-888-600-3080 for application support or volume pricing.
