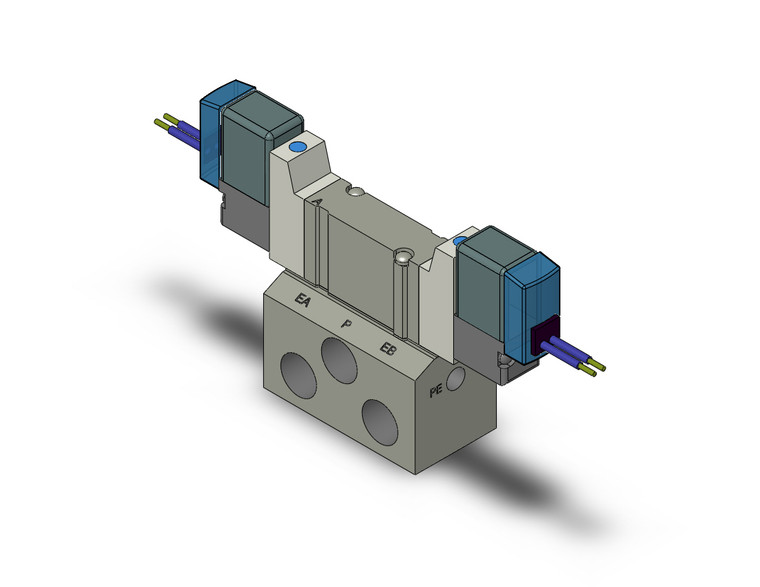

SMC SY3240-5HS-01 SY3000 5 Port Solenoid Valve, 2 Position Double, 24 VDC
SMC
$85.25
SMC SY3240-5HS-01 - SY3000·5000·7000·9000 Series 5 Port Solenoid Valve Base Mounted/Single Unit
The SMC SY series is a pilot-operated 5 port solenoid valve for directing compressed air to double-acting cylinders and actuators. This is the Legacy body style, used for direct replacement on existing SY manifolds and machines.
Specifications
| Series | SY3000 |
| Type Of Actuation | 2 Position Double |
| Pilot Type | Internal Pilot |
| Coil Specifications | Standard |
| Rated Voltage | 24 VDC |
| Electrical Entry | Grommet Lead Wire Length 600 mm |
| Light/Surge Voltage Suppressor | With Surge Voltage Suppressor |
| Manual Override | Push-turn Locking Type |
| Port Size | 1/8(Mounted With Sub-Plate) |
| Thread Type | Rc |
| Made To Order | Standard |
Features
- Combined mounting of 3 port valve and 5 port valve is possible
- Power consumption: 0.1 W (with power saving circuit)
- A wide variety of manifold options such as aluminum body manifold, DIN rail, stacking type manifold
- Manifold type No.: SS5Y3，SS5Y5，SS5Y7，SS5Y9
Applications
Used for cylinder control in machine automation and process equipment.
Related Components
- SY3000-11-25 - Gasket
- SY3000-23-4 - Round Head Combination Screw
- SY3000-27-1 - Sub-plate
Frequently Asked Questions
What voltage is the SMC SY3240-5HS-01?
The SY3240-5HS-01 is rated 24 VDC.
What type of actuation does the SY3240-5HS-01 use?
It is a 2 position double valve.
Can this be replaced with a New Style SY valve?
Not directly. New Style and Legacy SY valves use different manifold bases. Match the existing manifold type when replacing a valve in service.
Automation Distribution is an authorized SMC distributor. Call 1-888-600-3080 for application support or volume pricing.
