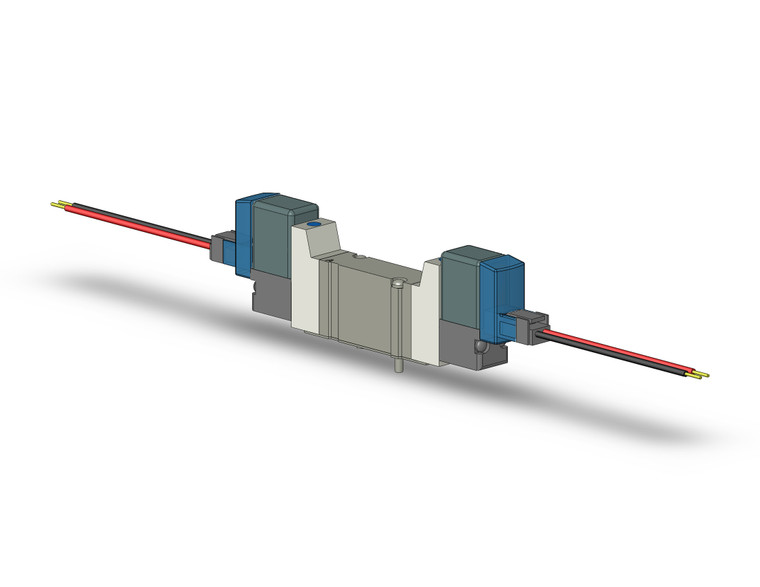

SMC SY3240-5LZ 4/5 Port Solenoid Valve
- SKU:
- SY3240-5LZ
- Condition:
- New
- Availability:
- In stock: 67
- Function:
- 2 (2 Position Double)
- Piping:
- 40 (Base Mounted Non Plug-in Single/Stacking Base, Plug-in Stacking Base)
- Pilot:
- Internal Pilot
- Specifications:
- Standard
- Voltage:
- 5 (24VDC)
- Lead Wire:
- L (L Plug Connector w/Lead Wire 0.3m)
- Surge Suppressor:
- Z (Light & Surge Suppressor)
- Manual Override:
- Non-locking Push Style
- Port Size:
- Base Mounted w/o Subplate
- Thread:
- Rc (or Metric)
- Option:
- w/o Bracket
Description
SY3000, 5 Port Solenoid Valve, All Types
Series SY offers major advances in valve performance for cost-effective solutions to your requirements. The series offers high flow with low power consumption in a compact design. The SY is available in body ported or base mounted styles and can be used individually or manifold mounted.
-
- Fluid: air- Operating pressure range: (internal pilot) 0.1 - 0.7MPa(external pilot) -100kPa to 0.7MPa(external pilot, pilot pressure range) 0.25 - 0.7MPa
- Effective area mm 2 (Cv): body ported 4.14 (0.23);base mounted 5.4 (0.3)
- Coil rated voltage: 3, 5, 6, 12, 24VDC;100, 110, 200, 220VAC
- Response time (0.5MPa) w/o indicator light surge voltage suppressor: 15ms or less
- Ambient fluid temperature: 50 C
