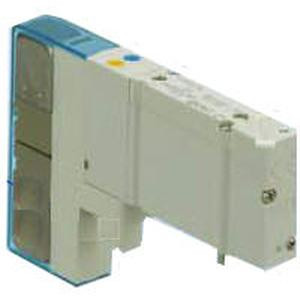

SMC SY3345-5FU-Q SY3000 5 Port Solenoid Valve, 3 Position Closed Center, 24 VDC
SMC
$100.60
SMC SY3345-5FU-Q - SY3000·5000 Series EX510 Gateway System Serial Transmission System Base Mounted Manifold/Stacking Type/Plug-in/5 Port Solenoid Valve
The SMC SY series is a pilot-operated 5 port solenoid valve for directing compressed air to double-acting cylinders and actuators. This is the Legacy body style, used for direct replacement on existing SY manifolds and machines.
Specifications
| Series | SY3000 |
| Type Of Actuation | 3 Position Closed Center |
| Body Option | Dual Body Type(Double/3 Position) |
| Pilot Type | Internal Pilot |
| Rated Voltage | 24 VDC |
| Manual Override | Push-turn Locking Type |
| Made To Order | Standard |
| CE-compliant | CE-compliant |
Features
- Combined mounting of 3 port valve and 5 port valve is possible
- Power consumption: 0.1 W (with power saving circuit)
- A wide variety of manifold options such as aluminum body manifold, DIN rail, stacking type manifold
- Manifold type No.: SS5Y3，SS5Y5，SS5Y7，SS5Y9
Applications
Used for cylinder control in machine automation and process equipment.
Related Components
- VZ3000-123-1A - Label For Block Disk
- SX3000-77-1A - Blocking Disk
- SX3000-75-2A-Q - Blanking Plate Assembly
- SY3000-39-3A-Q - Spacer Assembly
- SY3000-38-3A-Q - Spacer Assembly
Frequently Asked Questions
What voltage is the SMC SY3345-5FU-Q?
The SY3345-5FU-Q is rated 24 VDC.
What type of actuation does the SY3345-5FU-Q use?
It is a 3 position closed center valve.
Can this be replaced with a New Style SY valve?
Not directly. New Style and Legacy SY valves use different manifold bases. Match the existing manifold type when replacing a valve in service.
Automation Distribution is an authorized SMC distributor. Call 1-888-600-3080 for application support or volume pricing.
