SMC SY5120-5MPZ-N9T SY5000 5 Port Solenoid Valve, 2 Position Single, 24 VDC, One-touch Fitting For Φ5/16″
SMC
$60.80

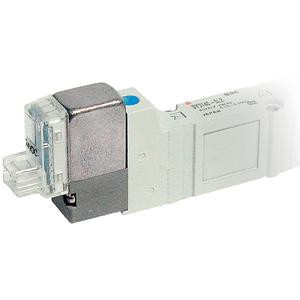

SMC SY5120-5MPZ-N9T - SY3000·5000·7000·9000 Series 5 Port Solenoid Valve Body Ported/Single Unit
The SMC SY series is a pilot-operated 5 port solenoid valve used to direct compressed air to double-acting cylinders and actuators. The New Style body delivers higher flow in the same footprint as the legacy design, letting a smaller valve size cover the same actuator.
Specifications
| Series | SY5000 |
| Type Of Actuation | 2 Position Single |
| Coil Specifications | Standard |
| Rated Voltage | 24 VDC |
| Electrical Entry | M-type Plug Connector With Lead Wire (Length 300 mm)Symbol For Connector Assembly With Cover |
| Light/Surge Voltage Suppressor | With Light/Surge Voltage Suppressor |
| Manual Override | Push-turn Locking Type |
| A/B Port Size | One-touch Fitting For Φ5/16″ |
| Thread Type | NPTF |
| Bracket | None |
| Made To Order | Standard |
Features
- Combined mounting of 3 port valve and 5 port valve is possible
- Power consumption: 0.1 W (with power saving circuit)
- A wide variety of manifold options such as aluminum body manifold, DIN rail, stacking type manifold
- Manifold type No.: SS5Y3，SS5Y5，SS5Y7，SS5Y9
Applications
Used for machine automation, assembly, and packaging cylinder control.
Related Components
- SY5000-GS-1 - Gasket Assembly
- SY5000-26-20A - Blanking Plate Assembly
- SY5000-26-21A - Blanking Plate Assembly
- SY5000-75-2TA - Individual SUP Spacer Assembly+Individual EXH Spacer Assembly
- SY5000-38-1TA - Individual SUP Spacer Assembly
- KQ2P-09 - Plug
Frequently Asked Questions
What voltage is the SMC SY5120-5MPZ-N9T?
The SY5120-5MPZ-N9T is rated 24 VDC.
What type of actuation does the SY5120-5MPZ-N9T use?
It is a 2 position single valve.
What port size does the SY5120-5MPZ-N9T have?
The A and B ports are One-touch Fitting For Φ5/16″.
Is this valve compatible with legacy SY manifolds?
New Style SY valves and Legacy SY valves use different manifold bases. Confirm the manifold type before ordering a replacement valve.
Automation Distribution is an authorized SMC distributor. Call 1-888-600-3080 for application support or volume pricing.
