SMC SY5540-2LZ SY5000 5 Port Solenoid Valve, 3 Position Pressure Center, 200 VAC
SMC
$89.45

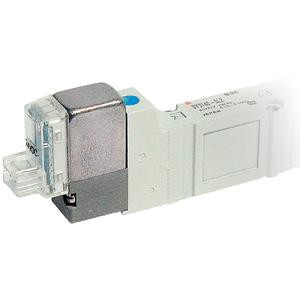

SMC SY5540-2LZ - SY3000·5000·7000·9000 Series 5 Port Solenoid Valve Base Mounted/Single Unit
The SMC SY series is a pilot-operated 5 port solenoid valve for directing compressed air to double-acting cylinders and actuators. This is the Legacy body style, used for direct replacement on existing SY manifolds and machines.
Specifications
| Series | SY5000 |
| Type Of Actuation | 3 Position Pressure Center |
| Pilot Type | Internal Pilot |
| Coil Specifications | Standard |
| Rated Voltage | 200 VAC |
| Electrical Entry | L-type Plug Connector With Lead Wire (Length 300 mm) |
| Light/Surge Voltage Suppressor | With Light/Surge Voltage Suppressor |
| Manual Override | Push-turn Locking Type |
| Port Size | Without Sub-plate |
| Thread Type | Rc |
| Made To Order | Standard |
Features
- Combined mounting of 3 port valve and 5 port valve is possible
- Power consumption: 0.1 W (with power saving circuit)
- A wide variety of manifold options such as aluminum body manifold, DIN rail, stacking type manifold
- Manifold type No.: SS5Y3，SS5Y5，SS5Y7，SS5Y9
Applications
Used for cylinder control in machine automation and process equipment.
Related Components
- AC00077 - Round Head Combination Screw
- SY5000-27-1 - Sub-plate
- SY5000-11-15 - Gasket
Frequently Asked Questions
What voltage is the SMC SY5540-2LZ?
The SY5540-2LZ is rated 200 VAC.
What type of actuation does the SY5540-2LZ use?
It is a 3 position pressure center valve.
Can this be replaced with a New Style SY valve?
Not directly. New Style and Legacy SY valves use different manifold bases. Match the existing manifold type when replacing a valve in service.
Automation Distribution is an authorized SMC distributor. Call 1-888-600-3080 for application support or volume pricing.
