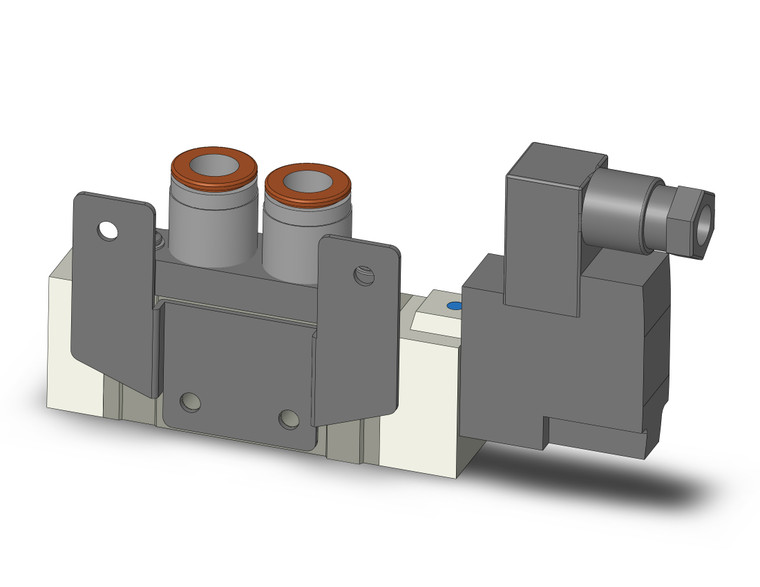

SMC SY7120-6DZ-N11T-F2 SY7000 5 Port Solenoid Valve, 2 Position Single, 12 VDC, One-touch Fitting For Φ3/8″

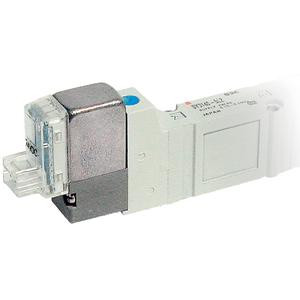

SMC SY7120-6DZ-N11T-F2 - SY3000·5000·7000·9000 Series 5 Port Solenoid Valve Body Ported/Single Unit

The SMC SY series is a pilot-operated 5 port solenoid valve for directing compressed air to double-acting cylinders and actuators. This is the Legacy body style, used for direct replacement on existing SY manifolds and machines.

Specifications

Features

• Combined mounting of 3 port valve and 5 port valve is possible
• Power consumption: 0.1 W (with power saving circuit)
• A wide variety of manifold options such as aluminum body manifold, DIN rail, stacking type manifold
• Manifold type No.: SS5Y3，SS5Y5，SS5Y7，SS5Y9

Applications

Used for cylinder control in machine automation and process equipment.

Related Components

• SY7000-GS-1 - Gasket Assembly
• SX7000-16-1A - Bracket(F2)
• SY7000-26-22A - Blanking Plate Assembly
• SY7000-26-23A - Blanking Plate Assembly
• SY7000-73-3TA - Individual SUP Spacer Assembly+Individual EXH Spacer Assembly
• SY7000-38-1TA - Individual SUP Spacer Assembly

Frequently Asked Questions

What voltage is the SMC SY7120-6DZ-N11T-F2?

The SY7120-6DZ-N11T-F2 is rated 12 VDC.

What type of actuation does the SY7120-6DZ-N11T-F2 use?

It is a 2 position single valve.

What port size does the SY7120-6DZ-N11T-F2 have?

The A and B ports are One-touch Fitting For Φ3/8″.

Can this be replaced with a New Style SY valve?

Not directly. New Style and Legacy SY valves use different manifold bases. Match the existing manifold type when replacing a valve in service.
