SMC SY7220-1DZ-02-F2 SY7000 5 Port Solenoid Valve, 2 Position Double, 100 VAC, 1/4
SMC
$101.10

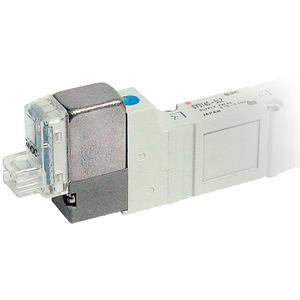

SMC SY7220-1DZ-02-F2 - SY3000·5000·7000·9000 Series 5 Port Solenoid Valve Body Ported/Single Unit
The SMC SY series is a pilot-operated 5 port solenoid valve for directing compressed air to double-acting cylinders and actuators. This is the Legacy body style, used for direct replacement on existing SY manifolds and machines.
Specifications
| Series | SY7000 |
| Type Of Actuation | 2 Position Double |
| Coil Specifications | Standard |
| Rated Voltage | 100 VAC |
| Electrical Entry | DIN Terminal |
| Light/Surge Voltage Suppressor | With Light/Surge Voltage Suppressor |
| Manual Override | Push-turn Locking Type |
| A/B Port Size | 1/4 |
| Thread Type | Rc |
| Bracket | With Side Bracket |
| Made To Order | Standard |
Features
- Combined mounting of 3 port valve and 5 port valve is possible
- Power consumption: 0.1 W (with power saving circuit)
- A wide variety of manifold options such as aluminum body manifold, DIN rail, stacking type manifold
- Manifold type No.: SS5Y3，SS5Y5，SS5Y7，SS5Y9
Applications
Used for cylinder control in machine automation and process equipment.
Related Components
- SY7000-GS-1 - Gasket Assembly
- SX7000-16-1A - Bracket(F2)
- SY7000-26-22A - Blanking Plate Assembly
- SY7000-26-23A - Blanking Plate Assembly
- SY7000-73-3A - Individual SUP Spacer Assembly+Individual EXH Spacer Assembly
- SY7000-38-1A - Individual SUP Spacer Assembly
Frequently Asked Questions
What voltage is the SMC SY7220-1DZ-02-F2?
The SY7220-1DZ-02-F2 is rated 100 VAC.
What type of actuation does the SY7220-1DZ-02-F2 use?
It is a 2 position double valve.
What port size does the SY7220-1DZ-02-F2 have?
The A and B ports are 1/4.
Can this be replaced with a New Style SY valve?
Not directly. New Style and Legacy SY valves use different manifold bases. Match the existing manifold type when replacing a valve in service.
Automation Distribution is an authorized SMC distributor. Call 1-888-600-3080 for application support or volume pricing.
