Description

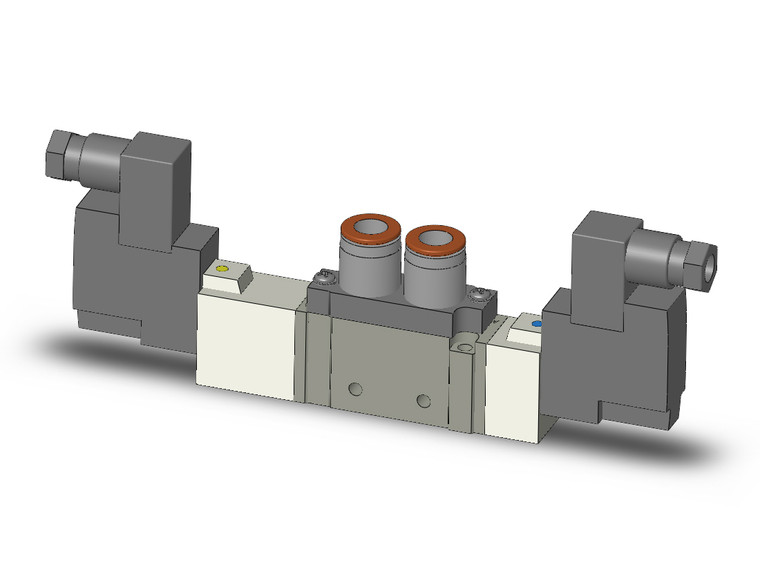

SY7000, 5 Port Solenoid Valve, All Types
Series SY offers major advances in valve performance for cost-effective solutions to your requirements. The series offers high flow with low power consumption in a compact design. The SY is available in body ported or base mounted styles and can be used individually or manifold mounted.
-
- Fluid: air- Operating pressure range: (internal pilot) 0.1 - 0.7MPa(external pilot) -100kPa to 0.7MPa(external pilot, pilot pressure range) 0.25 - 0.7MPa
- Effective area mm 2 (Cv): body ported 10.6 (0.59);base mounted 12.6 (0.7)
- Coil rated voltage: 3, 5, 6, 12, 24VDC;100, 110, 200, 220VAC
- Response time (0.5MPa) w/o indicator light surge voltage suppressor: 32ms or less
- Ambient fluid temperature: 50 C
Additional Information
Thread: |
NPTF |
Port Size: |
3/8" One touch Fitting |
Manual Override: |
Non-locking Push Style |
Lead Wire: |
DIN Terminal w/Connector |
Voltage: |
110VAC 50/60HZ |
Specifications: |
Standard |
Pilot: |
Internal Pilot |
Piping: |
Body Ported |
Function: |
3 Position Closed Center |
