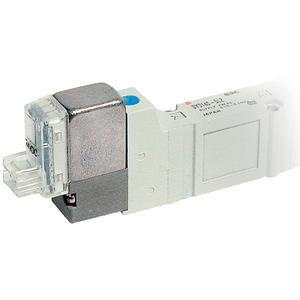

SMC SY7340R-6LOZ SY7000 5 Port Solenoid Valve, 3 Position Closed Center, 12 VDC
SMC
$86.65
SMC SY7340R-6LOZ - SY3000·5000·7000·9000 Series 5 Port Solenoid Valve Base Mounted/Single Unit
The SMC SY series is a pilot-operated 5 port solenoid valve for directing compressed air to double-acting cylinders and actuators. This is the Legacy body style, used for direct replacement on existing SY manifolds and machines.
Specifications
| Series | SY7000 |
| Type Of Actuation | 3 Position Closed Center |
| Pilot Type | External Pilot |
| Coil Specifications | Standard |
| Rated Voltage | 12 VDC |
| Electrical Entry | L-type Plug Connector Without Connector |
| Light/Surge Voltage Suppressor | With Light/Surge Voltage Suppressor |
| Manual Override | Push-turn Locking Type |
| Port Size | Without Sub-plate |
| Thread Type | Rc |
| Made To Order | Standard |
Features
- Combined mounting of 3 port valve and 5 port valve is possible
- Power consumption: 0.1 W (with power saving circuit)
- A wide variety of manifold options such as aluminum body manifold, DIN rail, stacking type manifold
- Manifold type No.: SS5Y3，SS5Y5，SS5Y7，SS5Y9
Applications
Used for cylinder control in machine automation and process equipment.
Related Components
- AC00296 - Replacement Parts Round Head Combination Screw
- SY7000-11-11 - Gasket
Frequently Asked Questions
What voltage is the SMC SY7340R-6LOZ?
The SY7340R-6LOZ is rated 12 VDC.
What type of actuation does the SY7340R-6LOZ use?
It is a 3 position closed center valve.
Can this be replaced with a New Style SY valve?
Not directly. New Style and Legacy SY valves use different manifold bases. Match the existing manifold type when replacing a valve in service.
Automation Distribution is an authorized SMC distributor. Call 1-888-600-3080 for application support or volume pricing.
