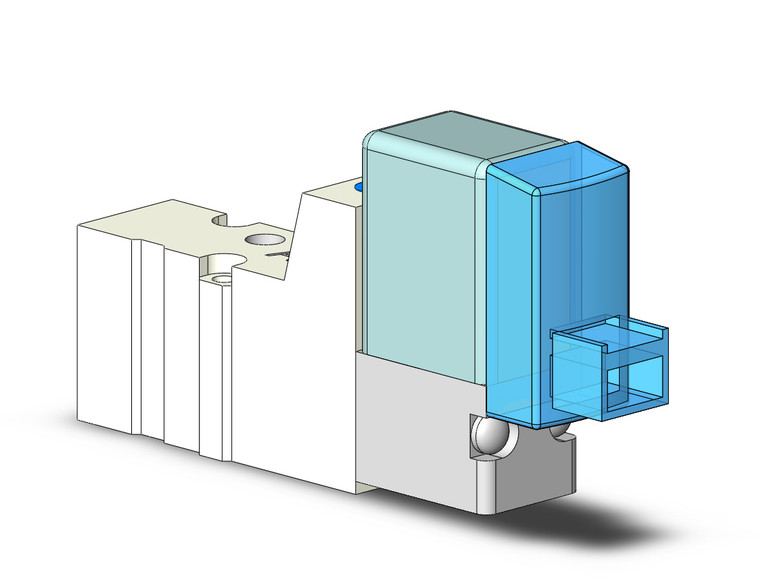

SMC SYJ312M-5LOZ-M3 SYJ300 Solenoid Valve, Normally Closed, Body Ported, 24 VDC
SMC
$35.60
SMC SYJ312M-5LOZ-M3 - SYJ300 Series 3 Port Pilot Solenoid Valve Rubber Seal Body Ported Single Valve
The SMC SYJ series is a compact pilot-operated solenoid valve for applications where mounting space is limited but full directional control is still required.
Specifications
| Series | SYJ300 |
| Type Of Actuation | Normally Closed |
| Piping Type | Body Ported |
| Body Option | Common Exhaust For The Pilot And Main Valve |
| Coil Specifications | Standard |
| Rated Voltage | 24 VDC |
| Electrical Entry | L-type Plug Connector Without Connector |
| Light/Surge Voltage Suppressor | With Light/Surge Voltage Suppressor |
| Manual Override | Non-locking Push Type |
| Port Size | M3X0.5 |
| Bracket | Without Bracket |
Features
- Power consumption: 0.1 W (with power saving circuit)
Applications
Used for compact cylinder control where panel space is limited.
Related Components
- SYJ300-9-1 - Sub-plate
Frequently Asked Questions
What voltage is the SMC SYJ312M-5LOZ-M3?
The SYJ312M-5LOZ-M3 is rated 24 VDC.
What type of actuation does the SYJ312M-5LOZ-M3 use?
It is a normally closed valve.
