SMC SYJ3130-5LOU SYJ3000 Solenoid Valve, 2 Position Single, Base Mounted(4 Port), 24 VDC
SMC
$43.50

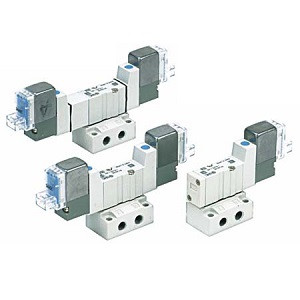

SMC SYJ3130-5LOU - SYJ3000 Series 4 Port Solenoid Valve Rubber Seal Base Mounted Single Valve
The SMC SYJ series is a compact pilot-operated solenoid valve for applications where mounting space is limited but full directional control is still required.
Specifications
| Series | SYJ3000 |
| Type Of Actuation | 2 Position Single |
| Piping Type | Base Mounted(4 Port) |
| Body Option | Pilot Valve Individual Exhaust For The Pilot Valve |
| Coil Specifications | Standard |
| Rated Voltage | 24 VDC |
| Electrical Entry | L-type Plug Connector Without Connector |
| Light/Surge Voltage Suppressor | With Light/Surge Voltage Suppressor(Non-polar Type) |
| Manual Override | Non-locking Push Type |
Features
- Combined mounting of 3 port valve and 5 port valve is possible
- Electricity consumption: 0.1 W (with power saving circuit)
- Manifold type No.: SS5YJ3，SS5YJ5，SS5YJ7
Applications
Used for compact cylinder control where panel space is limited.
Related Components
- SYJ3000-22-1 - Sub-plate
Frequently Asked Questions
What voltage is the SMC SYJ3130-5LOU?
The SYJ3130-5LOU is rated 24 VDC.
What type of actuation does the SYJ3130-5LOU use?
It is a 2 position single valve.
