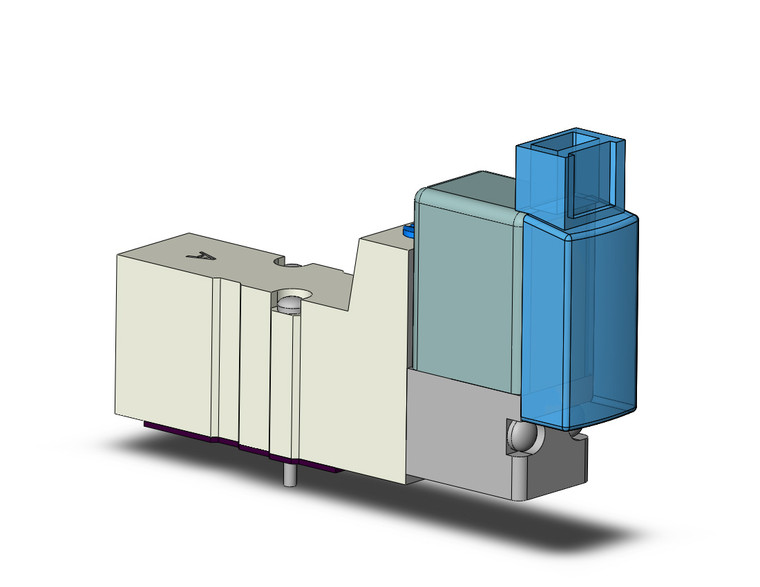

SMC SYJ3133-6MOZD SYJ3000 Solenoid Valve, 2 Position Single, Base Mounted(4 Port), 12 VDC
SMC
$44.70
SMC SYJ3133-6MOZD - SYJ3000 Series 4 Port Solenoid Valve Rubber Seal Base Mounted Single Valve
The SMC SYJ series is a compact pilot-operated solenoid valve for applications where mounting space is limited but full directional control is still required.
Specifications
| Series | SYJ3000 |
| Type Of Actuation | 2 Position Single |
| Piping Type | Base Mounted(4 Port) |
| Body Option | Main/Pilot Valve Common Exhaust |
| Coil Specifications | Standard |
| Rated Voltage | 12 VDC |
| Electrical Entry | M-type Plug Connector Without Connector |
| Light/Surge Voltage Suppressor | With Light/Surge Voltage Suppressor |
| Manual Override | Push-turn Locking Slotted Type |
Features
- Combined mounting of 3 port valve and 5 port valve is possible
- Electricity consumption: 0.1 W (with power saving circuit)
- Manifold type No.: SS5YJ3，SS5YJ5，SS5YJ7
Applications
Used for compact cylinder control where panel space is limited.
Related Components
- SYJ3000-22-1 - Sub-plate
Frequently Asked Questions
What voltage is the SMC SYJ3133-6MOZD?
The SYJ3133-6MOZD is rated 12 VDC.
What type of actuation does the SYJ3133-6MOZD use?
It is a 2 position single valve.
Automation Distribution is an authorized SMC distributor. Call 1-888-600-3080 for application support or volume pricing.
- Series:
- SYJ3000
- Type Of Actuation:
- 2 Position Single
- Piping Type:
- Base Mounted(4 Port)
- Body Option:
- Main/Pilot Valve Common Exhaust
- Coil Specifications:
- Standard
- Rated Voltage:
- 12 VDC
- Electrical Entry:
- M-type Plug Connector Without Connector
- Light/Surge Voltage Suppressor:
- With Light/Surge Voltage Suppressor
- Manual Override:
- Push-turn Locking Slotted Type
