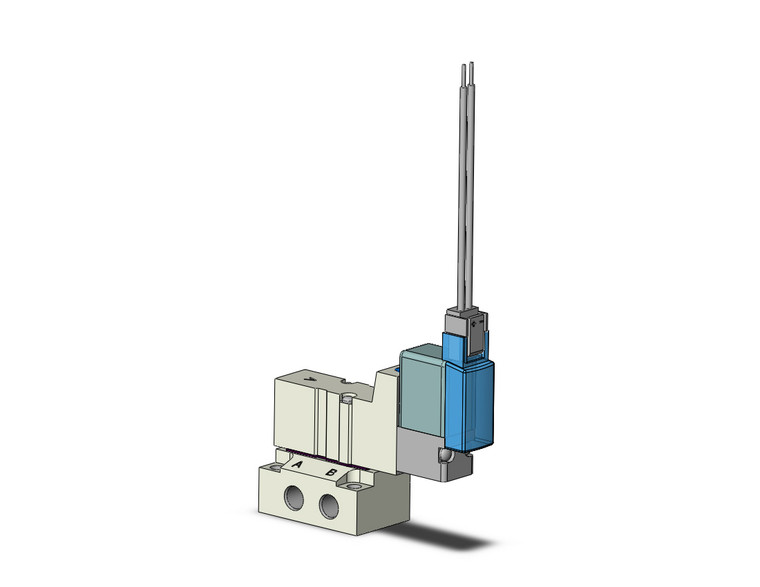

SMC SYJ3140-6MZ-M5 SYJ3000 Solenoid Valve, 2 Position Single, Base Mounted(5 Port), 12 VDC
SMC
$49.10

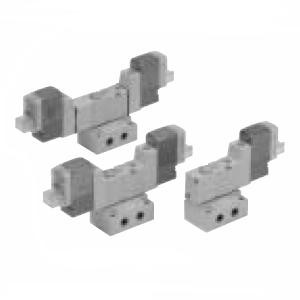

SMC SYJ3140-6MZ-M5 - SYJ3000 Series 5 Port Solenoid Valve Rubber Seal Base Mounted Single Valve
The SMC SYJ series is a compact pilot-operated solenoid valve for applications where mounting space is limited but full directional control is still required.
Specifications
| Series | SYJ3000 |
| Type Of Actuation | 2 Position Single |
| Piping Type | Base Mounted(5 Port) |
| Body Option | Pilot Valve Individual Exhaust For The Pilot Valve |
| Coil Specifications | Standard |
| Rated Voltage | 12 VDC |
| Electrical Entry | M-type Plug Connector With Lead Wire (Length 300 mm) |
| Light/Surge Voltage Suppressor | With Light/Surge Voltage Suppressor |
| Manual Override | Non-locking Push Type |
| Port Size | With M5 Port Sub-Plate |
Features
- Combined mounting of 3 port valve and 5 port valve is possible
- Electricity consumption: 0.1 W (with power saving circuit)
- Manifold type No.: SS5YJ3，SS5YJ5，SS5YJ7
Applications
Used for compact cylinder control where panel space is limited.
Related Components
- SYJ3000-22-1 - Sub-plate
Frequently Asked Questions
What voltage is the SMC SYJ3140-6MZ-M5?
The SYJ3140-6MZ-M5 is rated 12 VDC.
What type of actuation does the SYJ3140-6MZ-M5 use?
It is a 2 position single valve.
Automation Distribution is an authorized SMC distributor. Call 1-888-600-3080 for application support or volume pricing.
- Series:
- SYJ3000
- Type Of Actuation:
- 2 Position Single
- Piping Type:
- Base Mounted(5 Port)
- Body Option:
- Pilot Valve Individual Exhaust For The Pilot Valve
- Coil Specifications:
- Standard
- Rated Voltage:
- 12 VDC
- Electrical Entry:
- M-type Plug Connector With Lead Wire (Length 300 mm)
- Light/Surge Voltage Suppressor:
- With Light/Surge Voltage Suppressor
- Manual Override:
- Non-locking Push Type
- Port Size:
- With M5 Port Sub-Plate
