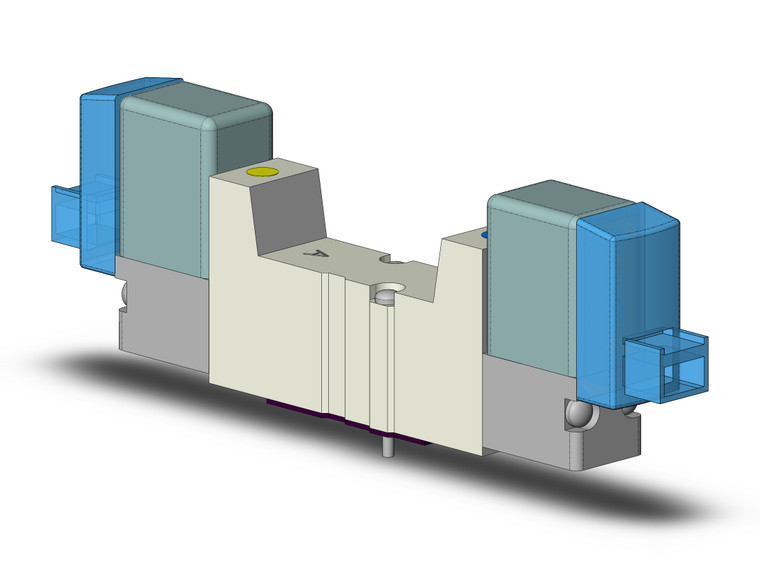

SMC SYJ3243-5LOZ SYJ3000 Solenoid Valve, 2 Position Double, Base Mounted(5 Port), 24 VDC
SMC
$59.15
SMC SYJ3243-5LOZ - SYJ3000 Series 5 Port Solenoid Valve Rubber Seal Base Mounted Single Valve
The SMC SYJ series is a compact pilot-operated solenoid valve for applications where mounting space is limited but full directional control is still required.
Specifications
| Series | SYJ3000 |
| Type Of Actuation | 2 Position Double |
| Piping Type | Base Mounted(5 Port) |
| Body Option | Main/Pilot Valve Common Exhaust |
| Coil Specifications | Standard |
| Rated Voltage | 24 VDC |
| Electrical Entry | L-type Plug Connector Without Connector |
| Light/Surge Voltage Suppressor | With Light/Surge Voltage Suppressor |
| Manual Override | Non-locking Push Type |
| Port Size | Without Sub-plate |
Features
- Combined mounting of 3 port valve and 5 port valve is possible
- Electricity consumption: 0.1 W (with power saving circuit)
- Manifold type No.: SS5YJ3，SS5YJ5，SS5YJ7
Applications
Used for compact cylinder control where panel space is limited.
Frequently Asked Questions
What voltage is the SMC SYJ3243-5LOZ?
The SYJ3243-5LOZ is rated 24 VDC.
What type of actuation does the SYJ3243-5LOZ use?
It is a 2 position double valve.
