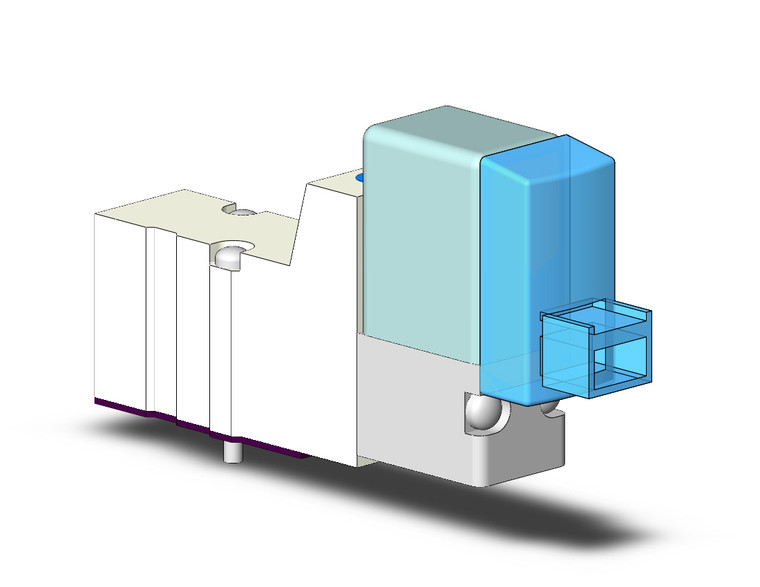

SMC SYJ324R-5LOZ SYJ300 Solenoid Valve, Normally Open, Base Mounted, 24 VDC
SMC
$35.53

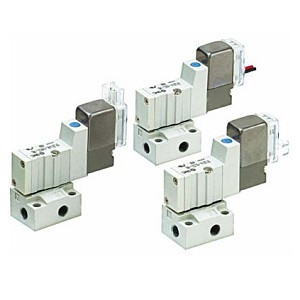

SMC SYJ324R-5LOZ - SYJ300 Series 3 Port Pilot Solenoid Valve Rubber Seal Base Mounted Single Valve
The SMC SYJ series is a compact pilot-operated solenoid valve for applications where mounting space is limited but full directional control is still required.
Specifications
| Series | SYJ300 |
| Type Of Actuation | Normally Open |
| Piping Type | Base Mounted |
| Body Option | External Pilot Style |
| Coil Specifications | Standard |
| Rated Voltage | 24 VDC |
| Electrical Entry | L-type Plug Connector Without Connector |
| Light/Surge Voltage Suppressor | With Light/Surge Voltage Suppressor |
| Manual Override | Non-locking Push Type |
| Port Size | Without Sub-plate |
Features
- Power consumption: 0.1 W (with power saving circuit)
Applications
Used for compact cylinder control where panel space is limited.
Frequently Asked Questions
What voltage is the SMC SYJ324R-5LOZ?
The SYJ324R-5LOZ is rated 24 VDC.
What type of actuation does the SYJ324R-5LOZ use?
It is a normally open valve.
Automation Distribution is an authorized SMC distributor. Call 1-888-600-3080 for application support or volume pricing.
