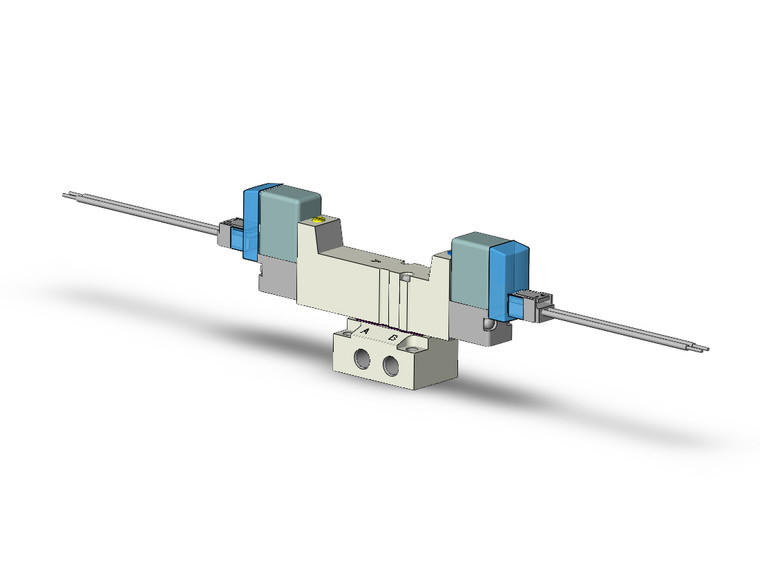

SMC SYJ3340-5LZD-M5 SYJ3000 Solenoid Valve, 3 Position Closed Center, Base Mounted(5 Port), 24 VDC
SMC
$83.00
SMC SYJ3340-5LZD-M5 - SYJ3000 Series 5 Port Solenoid Valve Rubber Seal Base Mounted Single Valve
The SMC SYJ series is a compact pilot-operated solenoid valve for applications where mounting space is limited but full directional control is still required.
Specifications
| Series | SYJ3000 |
| Type Of Actuation | 3 Position Closed Center |
| Piping Type | Base Mounted(5 Port) |
| Body Option | Pilot Valve Individual Exhaust For The Pilot Valve |
| Coil Specifications | Standard |
| Rated Voltage | 24 VDC |
| Electrical Entry | L-type Plug Connector With Lead Wire (Length 300 mm) |
| Light/Surge Voltage Suppressor | With Light/Surge Voltage Suppressor |
| Manual Override | Push-turn Locking Slotted Type |
| Port Size | With M5 Port Sub-Plate |
Features
- Combined mounting of 3 port valve and 5 port valve is possible
- Electricity consumption: 0.1 W (with power saving circuit)
- Manifold type No.: SS5YJ3，SS5YJ5，SS5YJ7
Applications
Used for compact cylinder control where panel space is limited.
Related Components
- SYJ3000-22-1 - Sub-plate
Frequently Asked Questions
What voltage is the SMC SYJ3340-5LZD-M5?
The SYJ3340-5LZD-M5 is rated 24 VDC.
What type of actuation does the SYJ3340-5LZD-M5 use?
It is a 3 position closed center valve.
Automation Distribution is an authorized SMC distributor. Call 1-888-600-3080 for application support or volume pricing.
