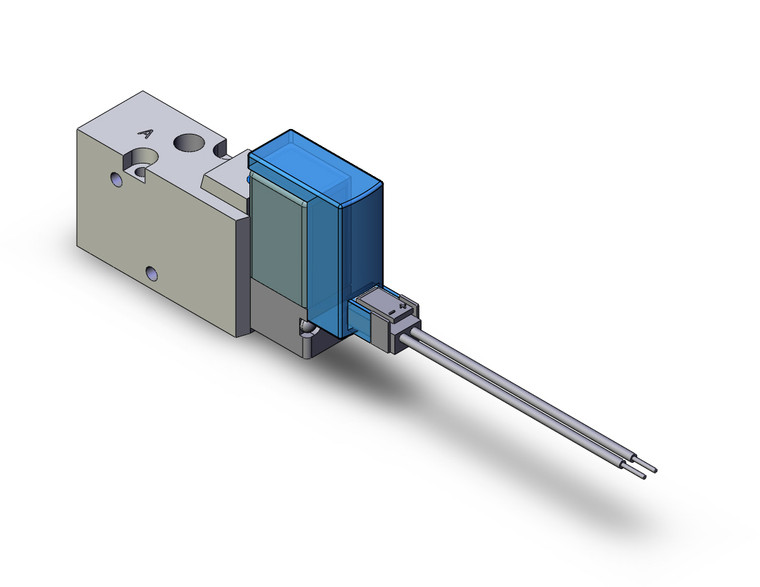

SMC SYJ512-3LZ-M5 SY1000 Solenoid Valve, Normally Closed, 110 VAC [115 VAC]
SMC
$42.85
SMC SYJ512-3LZ-M5 - SYJ500 Series 3Port Pilot Solenoid Valve Rubber Seal Body Ported
The SMC SYJ series is a compact pilot-operated solenoid valve for applications where mounting space is limited but full directional control is still required.
Specifications
| Type Of Actuation | Normally Closed |
| Body Option | Individual Pilot Exhaust Style |
| Coil Specifications | Standard |
| Rated Voltage | 110 VAC [115 VAC] |
| Electrical Entry | L-type Plug Connector With Lead Wire (Length 300 mm) |
| Light/Surge Voltage Suppressor | With Light/Surge Voltage Suppressor |
| Manual Override | Push-turn Locking Type |
| Bracket | Without Bracket |
| Made To Order | Standard |
Features
- Power consumption: 0.1 W (with power saving circuit)
Applications
Used for compact cylinder control where panel space is limited.
Related Components
- SYJ500-9-1 - Sub-plate
Frequently Asked Questions
What voltage is the SMC SYJ512-3LZ-M5?
The SYJ512-3LZ-M5 is rated 110 VAC [115 VAC].
What type of actuation does the SYJ512-3LZ-M5 use?
It is a normally closed valve.
Automation Distribution is an authorized SMC distributor. Call 1-888-600-3080 for application support or volume pricing.
