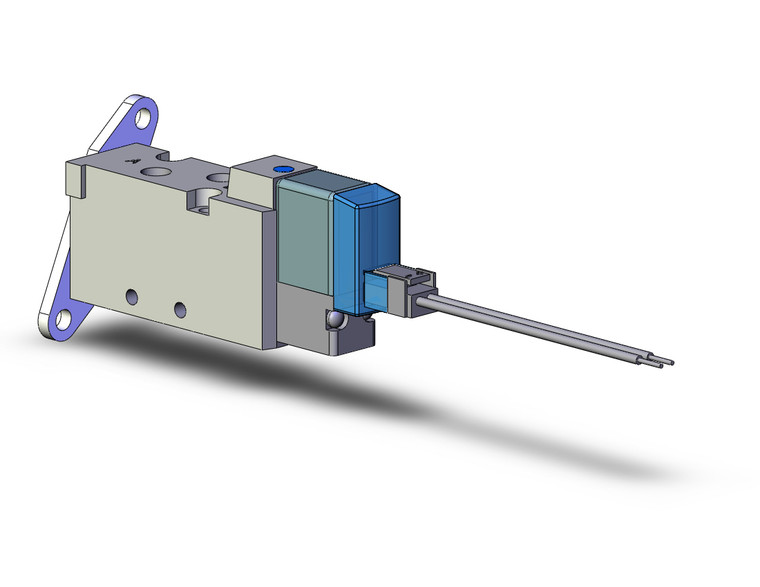

SMC SYJ5120-5LZ-M5-F SYJ5000 Solenoid Valve, 2 Position Single, Body Ported, 24 VDC, M5X0.8
SMC
$50.95
SMC SYJ5120-5LZ-M5-F - SYJ5000 Series 5 Port Solenoid Valve Rubber Seal Body Ported Single Valve
The SMC SYJ series is a compact pilot-operated solenoid valve for applications where mounting space is limited but full directional control is still required.
Specifications
| Series | SYJ5000 |
| Type Of Actuation | 2 Position Single |
| Piping Type | Body Ported |
| Body Option | Pilot Valve Individual Exhaust For The Pilot Valve |
| Coil Specifications | Standard |
| Rated Voltage | 24 VDC |
| Electrical Entry | L-type Plug Connector With Lead Wire (Length 300 mm) |
| Light/Surge Voltage Suppressor | With Light/Surge Voltage Suppressor |
| Manual Override | Non-locking Push Type |
| A/B Port Size | M5X0.8 |
| Bracket | With Bracket |
| Made To Order | Standard |
Features
- Combined mounting of 3 port valve and 5 port valve is possible
- Electricity consumption: 0.1 W (with power saving circuit)
- Manifold type No.: SS5YJ3，SS5YJ5，SS5YJ7
Applications
Used for compact cylinder control where panel space is limited.
Related Components
- SYJ5000-13-3A - Bracket Assembly
- SYJ5000-22-1 - Sub-plate
Frequently Asked Questions
What voltage is the SMC SYJ5120-5LZ-M5-F?
The SYJ5120-5LZ-M5-F is rated 24 VDC.
What type of actuation does the SYJ5120-5LZ-M5-F use?
It is a 2 position single valve.
What port size does the SYJ5120-5LZ-M5-F have?
The A and B ports are M5X0.8.
